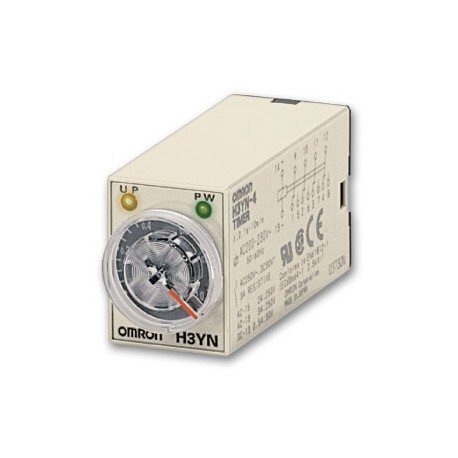

OMRON H3YN-21 AC24 H3YN-21 AC24 H3YN8010F H3YN21AC24OMI OMRON DPDT 0.1 min-10h 24vdc View larger
Images are for illustrative purposes only. Please refer to data sheet for details

H3YN-21 AC24 H3YN8010F H3YN21AC24OMI OMRON DPDT 0.1 min-10h 24vdc

H3YN-21 AC24

H3YN8010F

H3YN21AC24OMI

OMRON

10 Pcs.

DPDT 0.1 min-10h 24vdc Timer, plug-in, 8-pin, multifunction, 0.1min to 10h long time range model, DPDT, 24 VAC supply voltage

Automation > Timer relay
H3Y

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron DPDT 0.1 min-10h 24vdc (part number H3YN-21 AC24) is a compact plug-in time-delay relay applied in control enclosures to sequence electrical loads and automate repetitive machine actions. Technicians rely on these components to provide reliable time delays for motor control, lighting circuits, and industrial automation sub-assemblies.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP40
  • Voltage type (operating voltage) (EF005294): AC/DC
  • Voltage type for actuating (EF008242): AC
  • Type of electric connection (EF003961): Flat plug-in connection
  • Function delay on de-energization (EF003401): No
  • Suitable as remote control (EF003362): No
  • Outputs, reversible delayed/undelayed (EF006988): No
  • Function pulse shaping (EF003403): No
  • Suitable for DIN rail (top hat rail) mounting (EF007250): Yes
  • Complete with socket (EF003359): Yes
  • Function star-delta (EF003380): No
  • Function floating contact on energization (EF003378): No
  • Clock function, starting with pause, variable (EF003365): No
  • Function delay-on energization (EF003374): No
  • With semiconductor output (EF003373): No
  • Function floating contact on de-energization (EF003402): No

More info

▲
TypeAnalogInstallation typeSocketFunctionsMulti-functionalSize31 mmTerminal typePlug-inOperating modeFlicker OFF Start (Power ON Start), Flicker ON Start (Power ON Start), Interval (Power ON Start), ON Delay (Power ON Start)Output typeRelayContact descriptionDPDTTime range0.1 min - 10 hSupply voltage AC21.6-26.4 VNumber of pin contact8

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
