View larger
Images are for illustrative purposes only. Please refer to data sheet for details

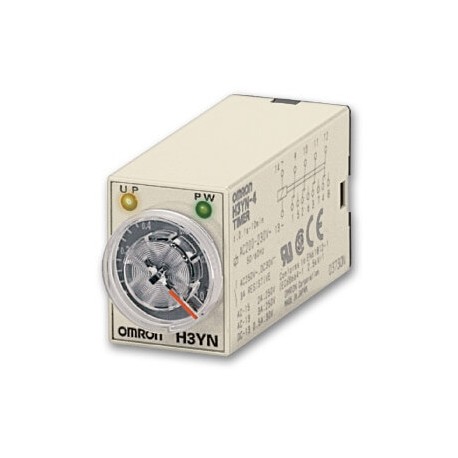

H3YN-2 DC48 H3YN8005M H3YN2DC48OMI OMRON DPDT 0.1 s-10min 24vdc
H3YN-2 DC48
H3YN8005M
H3YN2DC48OMI
OMRON
10 Pcs.
DPDT 0.1 s-10min 24vdc
Timer, plug-in, 8-pin, multifunction, 0.1 s-10 m short-time range model, DPDT, 48 VDC supply voltage
Automation > Timer relay
H3Y
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
TypeAnalogInstallation typeSocketFunctionsMulti-functionalSize31 mmTerminal typePlug-inOperating modeFlicker OFF Start (Power ON Start), Flicker ON Start (Power ON Start), Interval (Power ON Start), ON Delay (Power ON Start)Output typeRelayContact descriptionDPDTTime range0.1 s - 10 minSupply voltage DC48-48 VNumber of pin contact8
| Feature Name | Feature Value |
|---|---|
| Relay technology category according to IEC 61810-7 (EF016748) | RT I |
| Degree of protection (IP) (EF005474) | IP40 |
| Voltage type (operating voltage) (EF005294) | AC/DC |
| Voltage type for actuating (EF008242) | DC |
| Type of electric connection (EF003961) | Flat plug-in connection |
| Function delay on de-energization (EF003401) | No |
| Suitable as remote control (EF003362) | No |
| Outputs, reversible delayed/undelayed (EF006988) | No |
| Function pulse shaping (EF003403) | No |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | Yes |
| Complete with socket (EF003359) | Yes |
| Function star-delta (EF003380) | No |
| Function floating contact on energization (EF003378) | No |
| Clock function, starting with pause, variable (EF003365) | No |
| Function flashing, starting with pulse, fixed time (EF003364) | No |
| Function delay-on energization (EF003374) | No |
| With semiconductor output (EF003373) | No |
| Function floating contact on de-energization (EF003402) | No |
| Function flashing, starting with pause, fixed time (EF003363) | No |
| Suitable for front mounting (EF020288) | Yes |
| Clock function, starting with pulse, variable (EF003366) | No |
| Pluggable on auxiliary contact block (EF006952) | No |
| Remote operation possible (EF003361) | No |
| Number of outputs, delayed, normally open contact (EF006839) | 0 |
| Number of outputs, undelayed, normally open contact (EF006836) | 0 |
| Number of outputs, delayed, change-over contact (EF006840) | 2 |
| Number of outputs, delayed, normally closed contact (EF006838) | 0 |
| Number of outputs, undelayed, change-over contact (EF006837) | 0 |
| Width (EF000008) | 21.5 mm |
| Number of outputs, undelayed, normally closed contact (EF006835) | 0 |
| Height (EF000040) | 28 mm |
| Depth (EF000049) | 52.6 mm |
| Operating voltage DC (EF008208) | 0 V |
| Time range (EF003384) | 0.1 s |
| Rated control supply voltage DC (EF003980) | 48 V |
| Operating voltage AC 50 Hz (EF008206) | 0 V |
| Operating voltage AC 60 Hz (EF008207) | 0 V |
