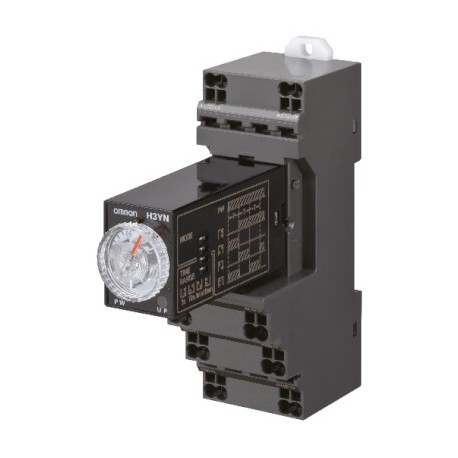

OMRON H3YN-2-B DC125 H3YN-2-B DC125 H3YN1107D H3YN2BDC125 OMRON DPDT 0.1 s-10m 5A 125 Vdc Coil up View larger
Images are for illustrative purposes only. Please refer to data sheet for details

H3YN-2-B DC125 H3YN1107D H3YN2BDC125 OMRON DPDT 0.1 s-10m 5A 125 Vdc Coil up

H3YN-2-B DC125

H3YN1107D

H3YN2BDC125

OMRON

10 Pcs.

DPDT 0.1 s-10m 5A 125 Vdc Coil up Timer, plug-in, 8-pin, multifunction, 0.1s-10m, DPDT, 5 A, 125 VDC Supply, Black, Top coil side

Automation > Timer relay
H3Y

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Features

Compact, Multi-function Timers with Plug-in socket

  • The Plug-in socket with Push-in plus technology, PYF-__-PU is available for easy wiring.
  • Easy replacement and reduces your maintenance time.
  • Space saving by Slim design 21.5 mm width.
  • Large transparent time setting knob facilitates time setting.

Ordering information

Operating modes

Control output

Supply voltage

Order code

Short-time range (0.1 s to 10 min)

Long-time range (0.1 m to 10 h)

On-delay, Interval,
Flicker OFF-start, Flicker ON Start

DPDT

24 VAC

H3YN-2-B AC24

H3YN-21-B AC24

48 VDC

H3YN-2-B DC48

H3YN-21-B DC48

24 VDC

H3YN-2-B DC24

H3YN-21-B DC24

12 VDC

H3YN-2-B DC12

H3YN-21-B DC12

100 to 120 VAC

H3YN-2-B AC100-120

H3YN-21-B AC100-120

200 to 230 VAC

H3YN-2-B AC200-230

H3YN-21-B AC200-230

100 to 110 VDC

H3YN-2-B DC100-110

H3YN-21-B DC100-110

125 VDC

H3YN-2-B DC125

H3YN-21-B DC125

4PDT

24 VAC

H3YN-4-B AC24

H3YN-41-B AC24

48 VDC

H3YN-4-B DC48

H3YN-41-B DC48

24 VDC

H3YN-4-B DC24

H3YN-41-B DC24

12 VDC

H3YN-4-B DC12

H3YN-41-B DC12

100 to 120 VAC

H3YN-4-B AC100-120

H3YN-41-B AC100-120

200 to 230 VAC

H3YN-4-B AC200-230

H3YN-41-B AC200-230

100 to 110 VDC

H3YN-4-B DC100-110

H3YN-41-B DC100-110

125 VDC

H3YN-4-B DC125

H3YN-41-B DC125

4PDT, Twin Contact

24 VDC

H3YN-4-Z-B DC24

H3YN-41-Z-B DC24

Note:There are other models with Screw socket compatibility available on request (grey version). Please contact your Omron representative for special request.

Accessories

Plug-in Socket

Type

Timer

Order code

Screwless socket with Push-in plus technology

H3YN-2-B/H3YN-21-B

PYF-08-PU-L

H3YN-4-B/H3YN-41-B/H3YN-41-Z-B

PYF-14-PU-L

Hold-down clip

Type

Order code

PYF-08-PU-L/PYF-14-PU-L

Y92H-3 (2 pcs in a pack)

Specifications

Item

H3YN-2-B/H3YN-21-B

H3YN-4-B/H3YN-41-B/H3YN-41-Z-B

Time ranges

0.1 s to 10 min (1 s, 10 s, 1 min, or 10 min max. selectable)

0.1 min to 10 h (1 min, 10 min, 1 h, or 10 h max. selectable)

Rated supply voltage1

24, 100 to 120, 200 to 230 VAC (50/60 Hz), 12, 24, 48, 100-110, 125 VDC

Pin type

Plug-in

Operating mode

ON-delay, interval, flicker OFF-start, or flicker-ON start selectable by DIP switch

Operating voltage range

85% to 110% of rated supply voltage (12 VDC: 90% to 110% of rated supply voltage)2

Reset voltage

10% max. of rated supply voltage

Control outputs

DPDT:
5 A at 250 VAC, resistive load (cosφ = 1)
The minimum applicable load is 1 mA at 5 VDC (P reference value).
Contact materials: Ag

4PDT:
3 A at 250 VAC, resistive load (cosφ = 1)
H3YN-4-B/-41-B series: The minimum applicable load is 1 mA at 1 VDC (P reference value)
H3YN-4-Z/-41-Z-B series: The minimum applicable load is 1 mA at 1 VDC (P reference value)
Contact materials: Au-clad + Ag-alloy

Accuracy of operating time

±1% FS max. (1 s range: ±1%±10 ms max.)

Setting error

±10% ±50 ms FS max.

Reset time

Min. power-opening time: 0.1 s max. (including halfway reset)

Influence of voltage

±2% FS max.

Influence of temperature

±2% FS max.

Ambient temperature

Operating: −10°C to 55°C (with no icing)
Storage: −25°C to 65°C (with no icing)

Degree of protection

IP40 (Terminal screw sections are excluded.)

Size in mm (H × W × D)

28 × 21.5 × 52.6
1.Refer to Safety Precautions for All Times when combining the timer with an AC 2-wire proximity sensor.
2.When using the H3YN in any place where the ambient temperature is more than 50°C, supply 90% to 110% of the rated voltages (12 VDC: 95% to 110% of the rated voltage).

ETIM for 669609 Relays (EC001439)
Feature Name Feature Value
Relay technology category according to IEC 61810-7 (EF016748) RT I
Degree of protection (IP) (EF005474) IP40
Voltage type (operating voltage) (EF005294) AC/DC
Voltage type for actuating (EF008242) DC
Type of electric connection (EF003961) Plug-in connection
Function delay on de-energization (EF003401) No
Suitable as remote control (EF003362) No
Outputs, reversible delayed/undelayed (EF006988) No
Function pulse shaping (EF003403) No
Complete with socket (EF003359) Yes
Function star-delta (EF003380) No
Function floating contact on energization (EF003378) Yes
Clock function, starting with pause, variable (EF003365) No
Function flashing, starting with pulse, fixed time (EF003364) No
Function delay-on energization (EF003374) Yes
With semiconductor output (EF003373) No
Function floating contact on de-energization (EF003402) No
Function flashing, starting with pause, fixed time (EF003363) No
Clock function, starting with pulse, variable (EF003366) No
Pluggable on auxiliary contact block (EF006952) No
Remote operation possible (EF003361) No
Number of outputs, delayed, normally open contact (EF006839) 2
Number of outputs, undelayed, normally open contact (EF006836) 0
Number of outputs, delayed, change-over contact (EF006840) 2
Number of outputs, delayed, normally closed contact (EF006838) 2
Number of outputs, undelayed, change-over contact (EF006837) 0
Width (EF000008) 21.5 mm
Number of outputs, undelayed, normally closed contact (EF006835) 0
Height (EF000040) 28 mm
Depth (EF000049) 56.6 mm
Operating voltage DC (EF008208) 0 V
Time range (EF003384) 0.1 s
Rated control supply voltage DC (EF003980) 125 V
Operating voltage AC 50 Hz (EF008206) 0 V
Operating voltage AC 60 Hz (EF008207) 0 V
