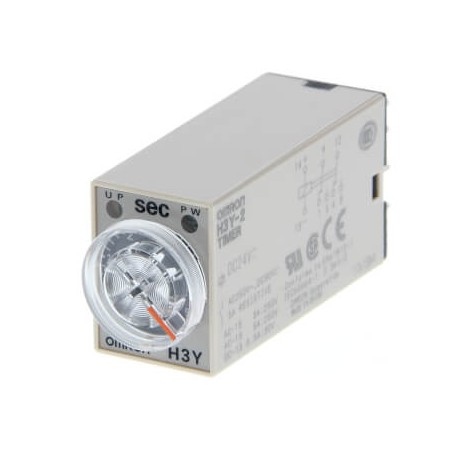

OMRON H3Y-2 DC24 5S H3Y-2 DC24 5S H3Y 6054D H3Y2DC245SOMI OMRON Mini Timer View larger
Images are for illustrative purposes only. Please refer to data sheet for details

H3Y-2 DC24 5S H3Y 6054D H3Y2DC245SOMI OMRON Mini Timer

H3Y-2 DC24 5S

H3Y 6054D

H3Y2DC245SOMI

OMRON

10 Pcs.

Mini Timer Timer, plug-in, 8-pin, on-delay, DPDT, 3 A, 24 VDC Supply, 0.5 - 5 Seconds

Automation > Timer relay
H3Y

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron Mini Timer (part number H3Y-2 DC24 5S) is a miniature solid-state timer utilized in tight control panel spaces to introduce measured time delays into electrical control circuits. These compact units help manage operational intervals and sequential starting routines for small motors, valves, and automation peripherals.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP40
  • Voltage type (operating voltage) (EF005294): AC/DC
  • Material of contact surface (EF004020): Untreated
  • Voltage type for actuating (EF008242): DC
  • Type of electric connection (EF003961): Plug-in connection
  • Function delay on de-energization (EF003401): No
  • Suitable as remote control (EF003362): No
  • Outputs, reversible delayed/undelayed (EF006988): No
  • Function pulse shaping (EF003403): No
  • Suitable for DIN rail (top hat rail) mounting (EF007250): Yes
  • Complete with socket (EF003359): No
  • Function star-delta (EF003380): No
  • Function floating contact on energization (EF003378): No
  • Clock function, starting with pause, variable (EF003365): No
  • Function delay-on energization (EF003374): No
  • With semiconductor output (EF003373): No

More info

▲
TypeAnalogInstallation typeSocketSize31 mmTerminal typePlug-inOperating modeON Delay (Power ON Start)Output typeRelayContact descriptionDPDTTime range0.2 s - 5 sSupply voltage DC24-24 VNumber of pin contact8

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
