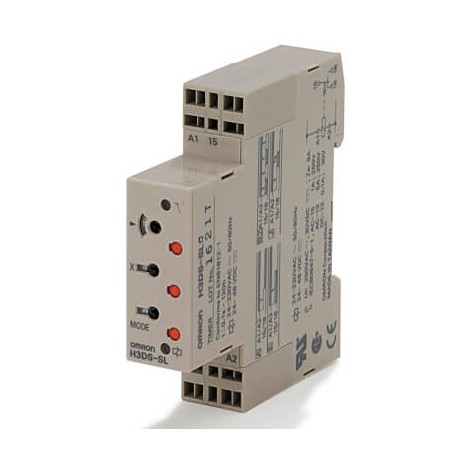

OMRON H3DS-SLC H3DS-SLC H3DS8004C H3DSSLCBYOKXOMI OMRON 17.5 mm DIN Standard quick Connection View larger
Images are for illustrative purposes only. Please refer to data sheet for details

H3DS-SLC H3DS8004C H3DSSLCBYOKXOMI OMRON 17.5 mm DIN Standard quick Connection

H3DS-SLC

H3DS8004C

H3DSSLCBYOKXOMI

OMRON

1 Pcs.

17.5 mm DIN Standard quick Connection Timer, DIN rail mounting, 17.5 mm, 24-230 VAC/24-48 VDC, on/flicker-on/interval/one-shot-delay, 0.1 s-120 h, SPDT, 5 A, 'Smart Dial' lockable settings

Automation > Timer relay
H3DS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron H3DS-SLC is an electronic timer designed for general timing and switching duties within automated industrial installations. Timing modules regulate operational sequences, manage delay intervals, and coordinate machinery steps across diverse manufacturing sectors.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP30
  • Voltage type (operating voltage) (EF005294): AC/DC
  • Voltage type for actuating (EF008242): AC/DC
  • Type of electric connection (EF003961): Spring clamp connection
  • Function delay on de-energization (EF003401): No
  • Suitable as remote control (EF003362): Yes
  • Outputs, reversible delayed/undelayed (EF006988): No
  • Function pulse shaping (EF003403): No
  • Suitable for DIN rail (top hat rail) mounting (EF007250): Yes
  • Complete with socket (EF003359): No
  • Function star-delta (EF003380): No
  • Function floating contact on energization (EF003378): Yes
  • Clock function, starting with pause, variable (EF003365): No
  • Function delay-on energization (EF003374): Yes
  • With semiconductor output (EF003373): No
  • Function floating contact on de-energization (EF003402): No

More info

▲
TypeAnalogInstallation typeDIN railFunctionsMulti-functionalSize17.5 mmTerminal typePush-inOperating modeFlicker ON Start (Power ON Start), Interval (Power ON Start), ON Delay (Power ON Start), One-shot Output (Power ON Start)Output typeRelayContact descriptionSPDTTime range0.1 s - 120 hSupply voltage AC24-230 VSupply voltage DC24-48 V
