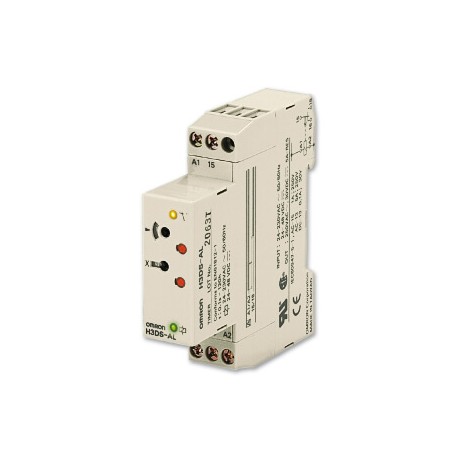

OMRON H3DS-SL AC/DC H3DS-SL AC/DC H3DS8010H H3DSSLACDCOMI OMRON 17.5 mm DIN Standard View larger
Images are for illustrative purposes only. Please refer to data sheet for details

H3DS-SL AC/DC H3DS8010H H3DSSLACDCOMI OMRON 17.5 mm DIN Standard

H3DS-SL AC/DC

H3DS8010H

H3DSSLACDCOMI

OMRON

1 Pcs.

17.5 mm DIN Standard Timer, DIN rail mounting, 17.5 mm, 24-230 VAC/24-48 VDC, on/flicker-on/interval/one-shot-delay, 0.1 s-120 h, SPDT, 5 A, 'Smart Dial' lockable settings

Automation > Timer relay
H3DS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A DIN-rail mountable time relay provides space-saving delay control within electrical distribution panels and machine automation systems. The Omron H3DS-SL AC/DC offers a slim profile housing designed to fit standard industrial rail setups while delivering reliable timing operations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Multi-functional timer: 24 to 230 VAC (50/60 Hz)/ 24 to 48 VDC
  • Standard timer: ON-delay, flicker ON start, interval, one­shot
  • Single function timer: ON-delay
  • Twin timer: Relay SPDT
  • Star-delta timer: 2× Relay SPST-NO
  • Two-wired timer: 24 to 230 VAC/VDC (50/60 Hz)
  • Mounting method: DIN-rail mounting
  • Operating voltage range: 85 to 110% of rated supply voltage
  • Power reset: Minimum power-off time: 0.1 s, 0.5 s for H3DS-G
  • Reset voltage: 2.4 VAC/VDC max., 1.0 VAC/VDC max. for H3DS-X
  • Voltage input: Max. permissible capacitance between input lines (terminals B1 and A2): 2,000 pF
  • Setting error: ±10% ±50 ms max. of FS
  • Influence of voltage: ±0.7% max. of FS (±0.7% ±10 ms max. at 1.2 s range)
  • Influence of temperature: ±5% max. of FS (±5% ±10 ms max. at 1.2 s range)
  • Life expectancy (not H3DS-X): Mechanical: 10 million operations min. (under no load at 1,800 operations/h)
  • Degree of protection (IP) (EF005474): IP30

More info

▲
Features

DIN-rail mounted, standard 17.5mm-width solid state timer range

This broad range of timers includes many functionalities and has a wide AC/DC power supply range. Models with screwless clamp connection available.

  • 17.5mm width, modular 45mm
  • DIN-rail mounting
  • 24-48VDC and 24-230VAC
  • 0.1 s to 120 h, 7 ranges

Ordering information

Type

Supply voltage

Control output

Time setting range

Operating modes

Order code

Screw
terminal type

Screw-less
clamp type

Multi-functional timer

24 to 230 VAC
(50/60 Hz)/
24 to 48 VDC

SPDT

0.1 s to120 h

ON-delay, flicker OFF start, flicker ON start,
signal ON/OFF-delay, signal OFF-delay,
interval, one-shot

H3DS-ML

H3DS-MLC

Standard timer

ON-delay, flicker ON start, interval, one­shot

H3DS-SL

H3DS-SLC

Single function timer

ON-delay

H3DS-AL

H3DS-ALC

Twin timer

Relay SPDT

0.1 s to 12 h

Flicker OFF start, flicker ON start

H3DS-FL

H3DS-FLC

Star-delta timer

2× Relay SPST-NO

1 s to 120 s

Star-delta

H3DS-GL

H3DS-GLC

Two-wired timer

24 to 230 VAC/VDC
(50/60 Hz)

SCR output

0.1 s to 120 h

ON-delay

H3DS-XL

H3DS-XLC

Specifications

Terminal block

Screw terminal type: Clamps two 2.5 mm2 max. bar terminals without sleeves

Screw-less clamp type: Clamps two 1.5 mm2 max. bar terminals without sleeves

Mounting method

DIN-rail mounting

Operating voltage range

85 to 110% of rated supply voltage

Power reset

Minimum power-off time: 0.1 s, 0.5 s for H3DS-G

Reset voltage

2.4 VAC/VDC max., 1.0 VAC/VDC max. for H3DS-X

Voltage input

Max. permissible capacitance between input lines (terminals B1 and A2): 2,000 pF

Load connectable in parallel with inputs (terminals B1 and A1)

H-level: 20.4 to 253 VAC/20.4 to 52.8 VDC

L-level: 0 to 2.4 VAC/VDC

Control output

Contact output: 5 A at 250 VAC with resistive load (cosφ = 1)

5 A at 30 VDC with resistive load (cosφ = 1)

Ambient temperature

Operating: -10 to 55°C (with no icing)

Storage: -25 to 65°C (with no icing)

Accuracy of operating time

±1% max. of FS (±1% ±10 ms max. at 1.2 s range)

Setting error

±10% ±50 ms max. of FS

Influence of voltage

±0.7% max. of FS (±0.7% ±10 ms max. at 1.2 s range)

Influence of temperature

±5% max. of FS (±5% ±10 ms max. at 1.2 s range)

Life expectancy (not H3DS-X)

Mechanical: 10 million operations min. (under no load at 1,800 operations/h)

Electrical: 100,000 operations min. (5 A at 250 VAC, resistive load at 360 operations/h)

Size in mm(HxWxD)

80x17.5x73
