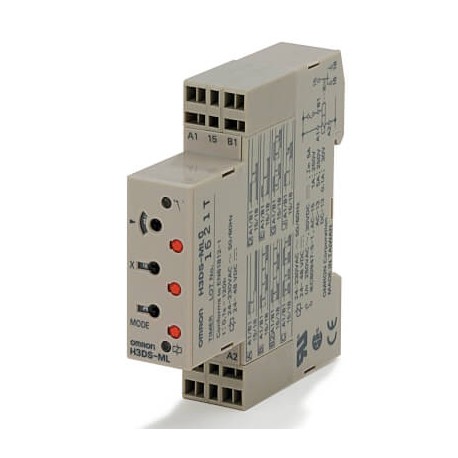

OMRON H3DS-MLC H3DS-MLC H3DS8005A H3DSMLCBYOKXOMI OMRON 17.5 mm DIN Multifunction fast Connection View larger
Images are for illustrative purposes only. Please refer to data sheet for details

H3DS-MLC H3DS8005A H3DSMLCBYOKXOMI OMRON 17.5 mm DIN Multifunction fast Connection

H3DS-MLC

H3DS8005A

H3DSMLCBYOKXOMI

OMRON

1 Pcs.

17.5 mm DIN Multifunction fast Connection Timer, DIN rail mounting, 17.5 mm, 24-230 VAC/24-48 VDC, multifunction, 0.1 s-120 h, SPDT, 5 A, lockable settings, screwless terminals

Automation > Timer relay
H3DS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for streamlined panel installations, the Omron H3DS-MLC multifunction fast connection timer provides precise interval regulation within industrial control panels. Such time-delay relays are widely utilized in manufacturing and process automation to coordinate sequential machine operations, pump controls, and protective relay schemes.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP30
  • Voltage type (operating voltage) (EF005294): AC/DC
  • Voltage type for actuating (EF008242): AC/DC
  • Type of electric connection (EF003961): Screw connection
  • Function delay on de-energization (EF003401): Yes
  • Suitable as remote control (EF003362): Yes
  • Outputs, reversible delayed/undelayed (EF006988): No
  • Function pulse shaping (EF003403): No
  • Suitable for DIN rail (top hat rail) mounting (EF007250): Yes
  • Complete with socket (EF003359): No
  • Function star-delta (EF003380): No
  • Function floating contact on energization (EF003378): Yes
  • Clock function, starting with pause, variable (EF003365): No
  • Function delay-on energization (EF003374): Yes
  • With semiconductor output (EF003373): No
  • Function floating contact on de-energization (EF003402): Yes

More info

▲
TypeAnalogInstallation typeDIN railFunctionsMulti-functionalSize17.5 mmTerminal typePush-inOperating modeFlicker OFF Start (Power ON Start), Flicker OFF Start (Signal Start), Flicker ON Start (Power ON Start), Flicker ON Start (Signal Start), Interval (Power ON Start), Interval (Signal Start), ON Delay (Power ON Start), ON Delay (Signal Start), One-shot Output (Power ON Start), One-shot Output (Signal Start), Signal ON/OFF DelayOutput typeRelayContact descriptionSPDTTime range0.1 s - 120 hSupply voltage AC24-230 VSupply voltage DC24-48 V

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
