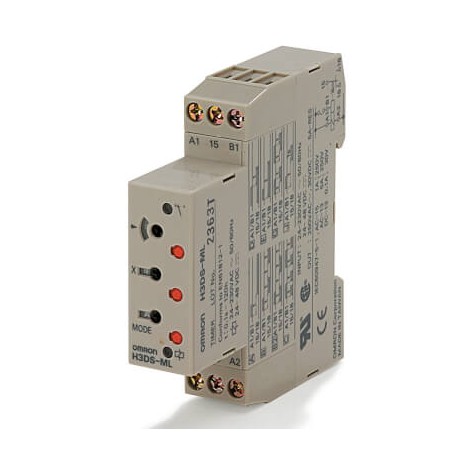

H3DS-ML AC/DC H3DS8011F H3DSMLACDCOMI OMRON 17.5 mm DIN Multi-function
H3DS-ML AC/DC
H3DS8011F
H3DSMLACDCOMI
OMRON
1 Pcs.
17.5 mm DIN Multi-function
Timer, DIN rail mounting, 17.5 mm, 24-230 VAC/24-48 VDC, multifunction, 0.1 s-120 h, SPDT, 5 A, 'Smart Dial' lockable settings
Automation > Timer relay
H3DS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Specifications
| Type | Analog |
| Installation type | DIN rail |
| Functions | Multi-functional |
| Size | 17.5 mm |
| Terminal type | Screw |
| Operating mode | Flicker OFF Start (Power ON Start), Flicker OFF Start (Signal Start), Flicker ON Start (Power ON Start), Flicker ON Start (Signal Start), Interval (Power ON Start), Interval (Signal Start), ON Delay (Power ON Start), ON Delay (Signal Start), One-shot Output (Power ON Start), One-shot Output (Signal Start), Signal ON/OFF Delay |
| Output type | Relay |
| Contact description | SPDT |
| Time range | 0.1 s - 120 h |
| Supply voltage AC | 24-230 V |
| Supply voltage DC | 24-48 V |
| Feature Name | Feature Value |
|---|---|
| Relay technology category according to IEC 61810-7 (EF016748) | RT I |
| Material of contact insert (EF008521) | Other |
| Degree of protection (IP) (EF005474) | IP30 |
| Voltage type (operating voltage) (EF005294) | AC/DC |
| Material of contact surface (EF004020) | Other |
| Voltage type for actuating (EF008242) | AC/DC |
| Type of electric connection (EF003961) | Screw connection |
| Material contact (EF007544) | Other |
| Function delay on de-energization (EF003401) | Yes |
| Suitable as remote control (EF003362) | Yes |
| Outputs, reversible delayed/undelayed (EF006988) | No |
| Function pulse shaping (EF003403) | No |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | Yes |
| Complete with socket (EF003359) | No |
| Function star-delta (EF003380) | No |
| Function floating contact on energization (EF003378) | Yes |
| Clock function, starting with pause, variable (EF003365) | No |
| Function flashing, starting with pulse, fixed time (EF003364) | No |
| Function delay-on energization (EF003374) | Yes |
| With semiconductor output (EF003373) | No |
| Function floating contact on de-energization (EF003402) | Yes |
| Function flashing, starting with pause, fixed time (EF003363) | No |
| Suitable for front mounting (EF020288) | No |
| Clock function, starting with pulse, variable (EF003366) | Yes |
| Pluggable on auxiliary contact block (EF006952) | No |
| Remote operation possible (EF003361) | No |
| Number of outputs, delayed, normally open contact (EF006839) | 0 |
| Number of outputs, undelayed, normally open contact (EF006836) | 0 |
| Number of outputs, delayed, change-over contact (EF006840) | 1 |
| Number of outputs, delayed, normally closed contact (EF006838) | 0 |
| Number of outputs, undelayed, change-over contact (EF006837) | 0 |
| Width (EF000008) | 22.5 mm |
| Number of outputs, undelayed, normally closed contact (EF006835) | 0 |
| Height (EF000040) | 79 mm |
| Depth (EF000049) | 100 mm |
| Nominal current (EF000001) | 5 A |
| Rated control supply voltage AC 60 Hz (EF003979) | 24 V |
| Operating voltage DC (EF008208) | 0 V |
| Rated control supply voltage AC 50 Hz (EF003978) | 24 V |
| Time range (EF003384) | 0.1 s |
| Rated control supply voltage DC (EF003980) | 24 V |
| Operating voltage AC 50 Hz (EF008206) | 0 V |
| Operating voltage AC 60 Hz (EF008207) | 0 V |
