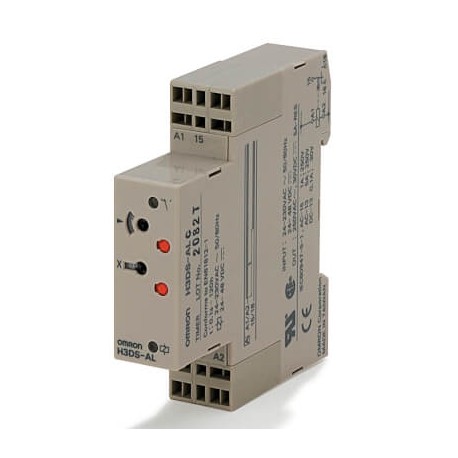

H3DS-ALC H3DS8003E H3DSALCBYOKXOMI OMRON 17.5 mm DIN Basic Delay ON a fast Connection
H3DS-ALC
H3DS8003E
H3DSALCBYOKXOMI
OMRON
1 Pcs.
17.5 mm DIN Basic Delay ON a fast Connection
Timer, DIN rail mounting, 17.5 mm, 24-230 VAC/24-48 VDC, on-delay, 0.1 s-120 h, SPDT, 5 A, lockable settings, screwless terminals, no-input available,
Automation > Timer relay
H3DS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
TypeAnalogInstallation typeDIN railFunctionsSingle functionSize17.5 mmTerminal typePush-inOperating modeON Delay (Power ON Start)Output typeRelayContact descriptionSPDTTime range0.1 s - 120 hSupply voltage AC24-230 VSupply voltage DC24-48 V
| Feature Name | Feature Value |
|---|---|
| Relay technology category according to IEC 61810-7 (EF016748) | RT I |
| Material of contact insert (EF008521) | Other |
| Degree of protection (IP) (EF005474) | IP30 |
| Voltage type (operating voltage) (EF005294) | AC/DC |
| Material of contact surface (EF004020) | Other |
| Voltage type for actuating (EF008242) | AC/DC |
| Type of electric connection (EF003961) | Screw connection |
| Material contact (EF007544) | Other |
| Function delay on de-energization (EF003401) | No |
| Suitable as remote control (EF003362) | Yes |
| Outputs, reversible delayed/undelayed (EF006988) | No |
| Function pulse shaping (EF003403) | No |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | Yes |
| Complete with socket (EF003359) | No |
| Function star-delta (EF003380) | No |
| Function floating contact on energization (EF003378) | Yes |
| Clock function, starting with pause, variable (EF003365) | Yes |
| Function flashing, starting with pulse, fixed time (EF003364) | No |
| Function delay-on energization (EF003374) | Yes |
| With semiconductor output (EF003373) | No |
| Function floating contact on de-energization (EF003402) | No |
| Function flashing, starting with pause, fixed time (EF003363) | No |
| Suitable for front mounting (EF020288) | No |
| Clock function, starting with pulse, variable (EF003366) | No |
| Pluggable on auxiliary contact block (EF006952) | No |
| Remote operation possible (EF003361) | No |
| Number of outputs, delayed, normally open contact (EF006839) | 0 |
| Number of outputs, undelayed, normally open contact (EF006836) | 0 |
| Number of outputs, delayed, change-over contact (EF006840) | 1 |
| Number of outputs, delayed, normally closed contact (EF006838) | 0 |
| Number of outputs, undelayed, change-over contact (EF006837) | 0 |
| Width (EF000008) | 17.5 mm |
| Number of outputs, undelayed, normally closed contact (EF006835) | 0 |
| Height (EF000040) | 79 mm |
| Depth (EF000049) | 100 mm |
| Nominal current (EF000001) | 5 A |
| Rated control supply voltage AC 60 Hz (EF003979) | 24 V |
| Operating voltage DC (EF008208) | 0 V |
| Rated control supply voltage AC 50 Hz (EF003978) | 24 V |
| Time range (EF003384) | 0.1 s |
| Rated control supply voltage DC (EF003980) | 24 V |
| Operating voltage AC 50 Hz (EF008206) | 0 V |
| Operating voltage AC 60 Hz (EF008207) | 0 V |
