OMRON H3DS-AL AC/DC H3DS-AL AC/DC H3DS8009D H3DSALACDCOMI OMRON 17.5 mm DIN Basic-Delay ON View larger
Images are for illustrative purposes only. Please refer to data sheet for details

H3DS-AL AC/DC H3DS8009D H3DSALACDCOMI OMRON 17.5 mm DIN Basic-Delay ON

H3DS-AL AC/DC

H3DS8009D

H3DSALACDCOMI

OMRON

1 Pcs.

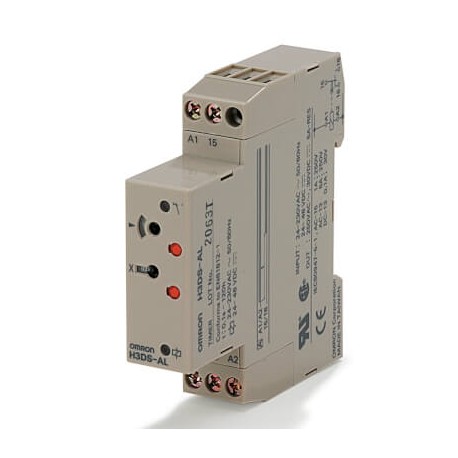

17.5 mm DIN Basic-Delay ON Timer, DIN rail mounting, 17.5 mm, 24-230 VAC/24-48 VDC, on-delay, 0.1 s-120 h, SPDT, 5 A, 'Smart Dial' lockable settings, no-input available, A singl Timer, DIN rail mounting, 17.5 mm, 24-230 VAC/24-48 VDC, on-delay, 0.1 s-120 h, SPDT, 5 A, 'Smart Dial' lockable settings, no-input available, A single operating mode, screw terminal type

Automation > Timer relay
H3DS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Specifications

TypeAnalog
Installation typeDIN rail
FunctionsSingle function
Size17.5 mm
Terminal typeScrew
Operating modeON Delay (Power ON Start)
Output typeRelay
Contact descriptionSPDT
Time range0.1 s - 120 h
Supply voltage AC24-230 V
Supply voltage DC24-48 V

Accessories

Y92S-38Adjustment and locking tool for H3DS

ETIM for 670944 Relays (EC001439)
Feature Name Feature Value
Relay technology category according to IEC 61810-7 (EF016748) RT I
Material of contact insert (EF008521) Other
Degree of protection (IP) (EF005474) IP30
Voltage type (operating voltage) (EF005294) AC/DC
Material of contact surface (EF004020) Other
Voltage type for actuating (EF008242) AC/DC
Type of electric connection (EF003961) Screw connection
Material contact (EF007544) Other
Function delay on de-energization (EF003401) No
Suitable as remote control (EF003362) Yes
Outputs, reversible delayed/undelayed (EF006988) No
Function pulse shaping (EF003403) No
Suitable for DIN rail (top hat rail) mounting (EF007250) Yes
Complete with socket (EF003359) No
Function star-delta (EF003380) No
Function floating contact on energization (EF003378) Yes
Clock function, starting with pause, variable (EF003365) Yes
Function flashing, starting with pulse, fixed time (EF003364) No
Function delay-on energization (EF003374) Yes
With semiconductor output (EF003373) No
Function floating contact on de-energization (EF003402) No
Function flashing, starting with pause, fixed time (EF003363) No
Suitable for front mounting (EF020288) No
Clock function, starting with pulse, variable (EF003366) No
Pluggable on auxiliary contact block (EF006952) No
Remote operation possible (EF003361) No
Number of outputs, delayed, normally open contact (EF006839) 0
Number of outputs, undelayed, normally open contact (EF006836) 0
Number of outputs, delayed, change-over contact (EF006840) 1
Number of outputs, delayed, normally closed contact (EF006838) 0
Number of outputs, undelayed, change-over contact (EF006837) 0
Width (EF000008) 17.5 mm
Number of outputs, undelayed, normally closed contact (EF006835) 0
Height (EF000040) 79 mm
Depth (EF000049) 100 mm
Nominal current (EF000001) 5 A
Rated control supply voltage AC 60 Hz (EF003979) 24 V
Operating voltage DC (EF008208) 0 V
Rated control supply voltage AC 50 Hz (EF003978) 24 V
Time range (EF003384) 0.1 s
Rated control supply voltage DC (EF003980) 24 V
Operating voltage AC 50 Hz (EF008206) 0 V
Operating voltage AC 60 Hz (EF008207) 0 V

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
