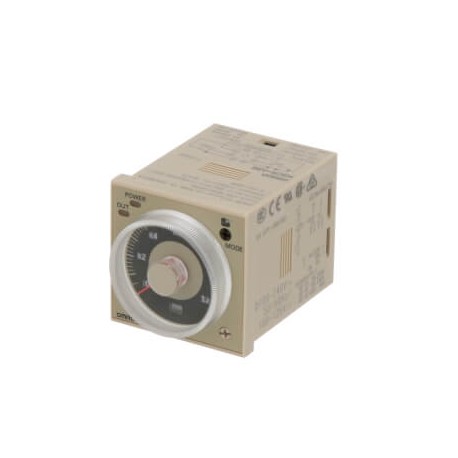

OMRON H3CR-A8E 24-48VAC/DC H3CR-A8E 24-48VAC/DC H3CR8098M H3CRA8EACDC2448OMI OMRON Multi-function 8-pin 2xSPDT 48x48 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

H3CR-A8E 24-48VAC/DC H3CR8098M H3CRA8EACDC2448OMI OMRON Multi-function 8-pin 2xSPDT 48x48

H3CR-A8E 24-48VAC/DC

H3CR8098M

H3CRA8EACDC2448OMI

OMRON

1 Pcs.

Multi-function 8-pin 2xSPDT 48x48 Timer, plug-in, 8-pin, 1/16DIN (48 x 48 mm), on/flicker-on/flicker-off/interval/one-shot-delay, 0.05s-300h, DPDT (inc. inst.), 5 A

Automation > Timer relay
H3CR

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron H3CR-A8E 24-48VAC/DC is a multi-function analog timer designed to govern electrical intervals in machinery and production lines. Timers of this type are vital for sequencing operations, managing pause intervals, and controlling auxiliary circuit responses in industrial automation.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type: Analog
  • Installation type: Socket
  • Functions: Multi-functional
  • Size: 1/16 DIN (48 x 48 mm)
  • Terminal type: Plug-in
  • Output type: Relay
  • Contact description: SPDT
  • Time range: 0.05 s - 300 h
  • Supply voltage AC: 24-48 V
  • Supply voltage DC: 24-48 V
  • Number of pin contact: 8
  • Inputs: No-voltage
  • Features: Instantaneous contact
  • Degree of protection (IP) (EF005474): IP40
  • Voltage type for actuating (EF008242): AC/DC
  • Voltage type (operating voltage) (EF005294): AC/DC

More info

▲

Specifications

TypeAnalog
Installation typeSocket
FunctionsMulti-functional
Size1/16 DIN (48 x 48 mm)
Terminal typePlug-in
Operating modeFlicker ON Start (Power ON Start), Interval (Power ON Start), ON Delay (Power ON Start), One-shot Output (Power ON Start)
Output typeRelay
Contact descriptionSPDT
Time range0.05 s - 300 h
Supply voltage AC24-48 V
Supply voltage DC24-48 V
Number of pin contact8
InputsNo-voltage
FeaturesInstantaneous contact

Accessories

P3G-08Socket, back-connecting, 8-pin, screw terminals
Y92A-48BProtective cover for DIN 48x48 mm device, hard plastic
Y92F-30Flush panel mounting adapter for DIN 48x48 mm device
Y92F-73Adapter for H3CR replacement of STP-YMH timer
