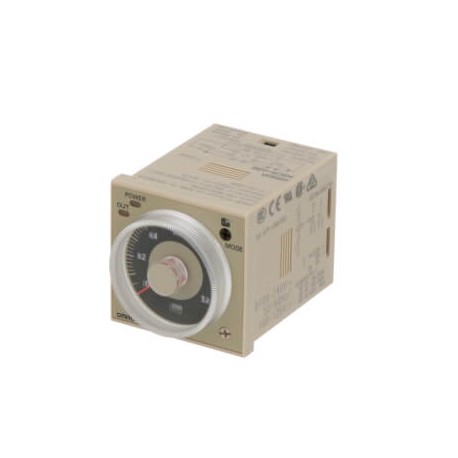

OMRON H3CR-A8E 100-240VAC/100-125VDC H3CR-A8E 100-240VAC/100-125VDC H3CR8097A H3CRA8EAC100240DC100OMI OMRON Multi-function 8-pin 2xSPDT 48x48 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

H3CR-A8E 100-240VAC/100-125VDC H3CR8097A H3CRA8EAC100240DC100OMI OMRON Multi-function 8-pin 2xSPDT 48x48

H3CR-A8E 100-240VAC/100-125VDC

H3CR8097A

H3CRA8EAC100240DC100OMI

OMRON

1 Pcs.

Multi-function 8-pin 2xSPDT 48x48 Timer, plug-in, 8-pin, 1/16DIN (48 x 48 mm), on/flicker-on/flicker-off/interval/one-shot-delay, 0.05s-300h, DPDT (inc. inst.), 5 A

Automation > Timer relay
H3CR

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron H3CR-A8E 100-240VAC/100-125VDC is a multi-function analog time relay designed to fit standard panel cutouts while offering versatile timing configurations for industrial automation. Engineers integrate multi-mode timers into equipment to handle cyclical operations, interval delays, and sequential automation routines.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type: Analog
  • Installation type: Socket
  • Functions: Multi-functional
  • Size: 1/16 DIN (48 x 48 mm)
  • Terminal type: Plug-in
  • Output type: Relay
  • Contact description: SPDT
  • Time range: 0.05 s - 300 h
  • Supply voltage AC: 100-240 V
  • Supply voltage DC: 100-125 V
  • Number of pin contact: 8
  • Inputs: No-voltage
  • Features: Instantaneous contact
  • Degree of protection (IP) (EF005474): IP40
  • Voltage type for actuating (EF008242): AC/DC
  • Voltage type (operating voltage) (EF005294): AC/DC

More info

▲

Specifications

TypeAnalog
Installation typeSocket
FunctionsMulti-functional
Size1/16 DIN (48 x 48 mm)
Terminal typePlug-in
Operating modeFlicker ON Start (Power ON Start), Interval (Power ON Start), ON Delay (Power ON Start), One-shot Output (Power ON Start)
Output typeRelay
Contact descriptionSPDT
Time range0.05 s - 300 h
Supply voltage AC100-240 V
Supply voltage DC100-125 V
Number of pin contact8
InputsNo-voltage
FeaturesInstantaneous contact

Accessories

P3G-08Socket, back-connecting, 8-pin, screw terminals
Y92A-48BProtective cover for DIN 48x48 mm device, hard plastic
Y92F-30Flush panel mounting adapter for DIN 48x48 mm device
Y92F-73Adapter for H3CR replacement of STP-YMH timer
