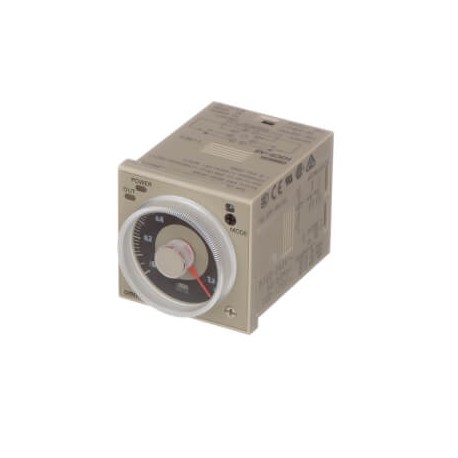

OMRON H3CR-A8 100-240VAC/100-125VDC H3CR-A8 100-240VAC/100-125VDC H3CR8095E H3CRA8AC100240DC100125OMI OMRON Multi-function 8-pin DPDT View larger
Images are for illustrative purposes only. Please refer to data sheet for details

H3CR-A8 100-240VAC/100-125VDC H3CR8095E H3CRA8AC100240DC100125OMI OMRON Multi-function 8-pin DPDT

H3CR-A8 100-240VAC/100-125VDC

H3CR8095E

H3CRA8AC100240DC100125OMI

OMRON

1 Pcs.

Multi-function 8-pin DPDT Timer, plug-in, 8-pin, 1/16DIN (48 x 48 mm), on/flicker-on/flicker-off/interval/one-shot-delay, 0.05s-300h, DPDT, 5 A

Automation > Timer relay
H3CR

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Operating as a versatile control device, the Omron H3CR-A8 100-240VAC/100-125VDC multi-function 8-pin DPDT manages time-dependent operations across complex industrial automation architectures. Engineers rely on these multi-functional timers to sequence motor startups, regulate conveyor intervals, and coordinate automated machine cycles reliably.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Type: Analog
  • Installation type: Socket
  • Functions: Multi-functional
  • Size: 1/16 DIN (48 x 48 mm)
  • Terminal type: Plug-in
  • Output type: Relay
  • Contact description: DPDT
  • Time range: 0.05 s - 300 h
  • Supply voltage AC: 100-240 V
  • Supply voltage DC: 100-125 V
  • Number of pin contact: 8
  • Inputs: No-voltage
  • Degree of protection (IP) (EF005474): IP40
  • Voltage type for actuating (EF008242): AC/DC
  • Voltage type (operating voltage) (EF005294): AC/DC
  • Material of contact surface (EF004020): Silver

More info

▲

Specifications

TypeAnalog
Installation typeSocket
FunctionsMulti-functional
Size1/16 DIN (48 x 48 mm)
Terminal typePlug-in
Operating modeFlicker OFF Start (Power ON Start), Flicker ON Start (Power ON Start), Interval (Power ON Start), ON Delay (Power ON Start), One-shot Output (Power ON Start)
Output typeRelay
Contact descriptionDPDT
Time range0.05 s - 300 h
Supply voltage AC100-240 V
Supply voltage DC100-125 V
Number of pin contact8
InputsNo-voltage

Accessories

P3G-08Socket, back-connecting, 8-pin, screw terminals
Y92A-48BProtective cover for DIN 48x48 mm device, hard plastic
Y92F-30Flush panel mounting adapter for DIN 48x48 mm device
Y92F-73Adapter for H3CR replacement of STP-YMH timer
