> OMRON > Timers > H3CR > H3CR8091B
OMRON H3CR-A AC24-48/DC12-48 H3CR-A AC24-48/DC12-48 H3CR8091B H3CRAAC2448DC1248OMI OMRON Mutifunción 11-pin DPDT View larger
Images are for illustrative purposes only. Please refer to data sheet for details

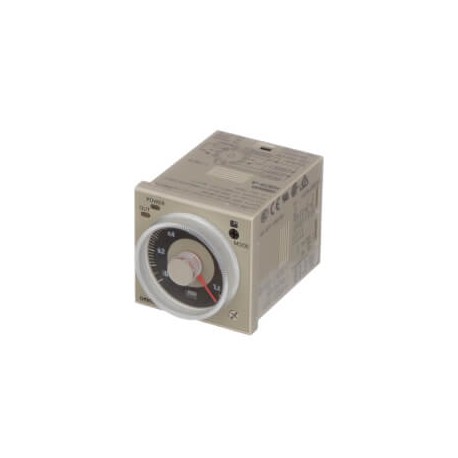

H3CR-A AC24-48/DC12-48 H3CR8091B H3CRAAC2448DC1248OMI OMRON Mutifunción 11-pin DPDT

H3CR-A AC24-48/DC12-48

H3CR8091B

H3CRAAC2448DC1248OMI

OMRON

1 Pcs.

Mutifunción 11-pin DPDT Timer, plug-in, 11-pin, DIN 48 x 48 mm, multifunction, 0.05 s-300 h, DPDT, 5 A, 24-48VAC, 12-48VDC

Automation > Timer relay
H3CR

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Specifications

TypeAnalog
Installation typeSocket
FunctionsMulti-functional
Size1/16 DIN (48 x 48 mm)
Terminal typePlug-in
Operating modeFlicker OFF Start (Signal Start), Flicker ON Start (Signal Start), Interval (Signal Start), OFF Delay (Signal), ON Delay (Signal Start), One-shot Output (Signal Start), Signal ON/OFF Delay
Output typeRelay
Contact descriptionDPDT
Time range0.05 s - 300 h
Supply voltage AC24-48 V
Supply voltage DC12-48 V
Number of pin contact11
InputsNo-voltage

Accessories

P3GA-11Socket, back-connecting, 11-pin, screw terminals
Y92A-48BProtective cover for DIN 48x48 mm device, hard plastic
Y92F-30Flush panel mounting adapter for DIN 48x48 mm device
Y92F-73Adapter for H3CR replacement of STP-YMH timer

ETIM for 667959 Relays (EC001439)
Feature Name Feature Value
Relay technology category according to IEC 61810-7 (EF016748) RT I
Material of contact insert (EF008521) Other
Degree of protection (IP) (EF005474) IP40
Voltage type (operating voltage) (EF005294) AC/DC
Material of contact surface (EF004020) Silver
Voltage type for actuating (EF008242) AC/DC
Type of electric connection (EF003961) Plug-in connection
Material contact (EF007544) Other
Function delay on de-energization (EF003401) No
Suitable as remote control (EF003362) No
Outputs, reversible delayed/undelayed (EF006988) Yes
Function pulse shaping (EF003403) No
Suitable for DIN rail (top hat rail) mounting (EF007250) Yes
Complete with socket (EF003359) No
Function star-delta (EF003380) No
Function floating contact on energization (EF003378) Yes
Clock function, starting with pause, variable (EF003365) No
Function flashing, starting with pulse, fixed time (EF003364) No
Function delay-on energization (EF003374) Yes
With semiconductor output (EF003373) No
Function floating contact on de-energization (EF003402) No
Function flashing, starting with pause, fixed time (EF003363) No
Suitable for front mounting (EF020288) Yes
Clock function, starting with pulse, variable (EF003366) Yes
Pluggable on auxiliary contact block (EF006952) No
Remote operation possible (EF003361) No
Number of outputs, delayed, normally open contact (EF006839) 0
Number of outputs, undelayed, normally open contact (EF006836) 0
Number of outputs, delayed, change-over contact (EF006840) 2
Number of outputs, delayed, normally closed contact (EF006838) 0
Number of outputs, undelayed, change-over contact (EF006837) 0
Width (EF000008) 48 mm
Number of outputs, undelayed, normally closed contact (EF006835) 0
Height (EF000040) 48 mm
Depth (EF000049) 68 mm
Nominal current (EF000001) 5 A
Rated control supply voltage AC 60 Hz (EF003979) 24 V
Operating voltage DC (EF008208) 0 V
Rated control supply voltage AC 50 Hz (EF003978) 24 V
Time range (EF003384) 0.05 s
Rated control supply voltage DC (EF003980) 12 V
Operating voltage AC 50 Hz (EF008206) 0 V
Operating voltage AC 60 Hz (EF008207) 0 V

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
