H3CR-A-301 AC24-48/DC12-48

H3CR8103M

H3CRA301AC2448DC1248OMI

OMRON

1 Pcs.

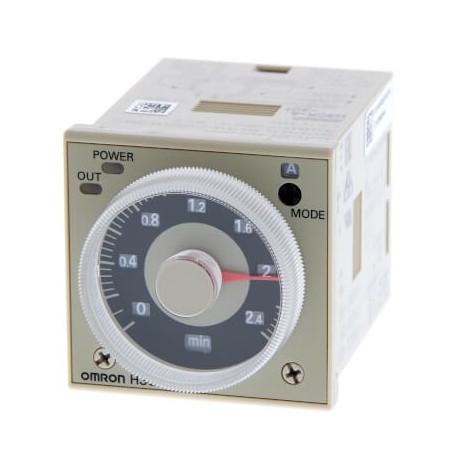

Multifunction 48x48 Timer, plug-in, 11-pin, 1/16DIN (48 x 48 mm), multifunction, 0.1s-600h, DPDT, 5 A

Automation > Timer relay
H3CR

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron H3CR-A-301 AC24-48/DC12-48 is an analog multifunction timer built for flexible time delay applications in automated machinery. Multifunction timing units allow engineers to select different operating modes—such as interval, flicker, or delay—within a single standardized housing. Confirm pricing, availability and lead time per enquiry through an RFQ.

  • Type: Analog
  • Installation type: Socket
  • Functions: Multi-functional
  • Size: 1/16 DIN (48 x 48 mm)
  • Terminal type: Plug-in
  • Output type: Relay
  • Contact description: DPDT
  • Time range: 0.1 s - 600 h
  • Supply voltage AC: 24-48 V
  • Supply voltage DC: 12-48 V
  • Number of pin contact: 11
  • Inputs: No-voltage
  • Degree of protection (IP) (EF005474): IP40
  • Voltage type (operating voltage) (EF005294): AC/DC
  • Material of contact surface (EF004020): Silver
  • Voltage type for actuating (EF008242): AC/DC

More info

▲

Specifications

TypeAnalog
Installation typeSocket
FunctionsMulti-functional
Size1/16 DIN (48 x 48 mm)
Terminal typePlug-in
Operating modeFlicker OFF Start (Signal Start), Flicker ON Start (Signal Start), Interval (Signal Start), OFF Delay (Signal), ON Delay (Signal Start), Signal ON/OFF Delay
Output typeRelay
Contact descriptionDPDT
Time range0.1 s - 600 h
Supply voltage AC24-48 V
Supply voltage DC12-48 V
Number of pin contact11
InputsNo-voltage

Accessories

P3GA-11Socket, back-connecting, 11-pin, screw terminals
Y92A-48BProtective cover for DIN 48x48 mm device, hard plastic
Y92F-30Flush panel mounting adapter for DIN 48x48 mm device
Y92F-73Adapter for H3CR replacement of STP-YMH timer

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
