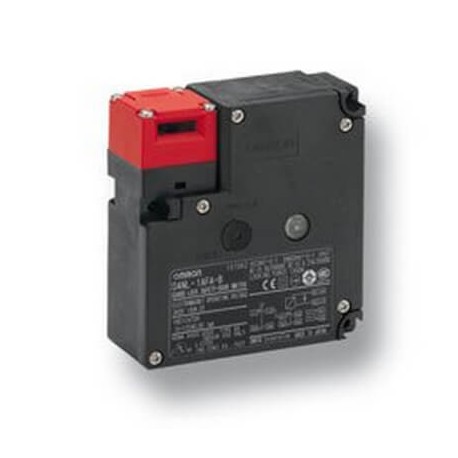

OMRON D4NL-4EFA-B D4NL-4EFA-B D4NL0015B D4NL4EFAB OMRON Lock makan desert/Opening solen.24vdc 2NC/1NO + 1NC/1NO Indicates IP67.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4NL-4EFA-B D4NL0015B D4NL4EFAB OMRON Lock makan desert/Opening solen.24vdc 2NC/1NO + 1NC/1NO Indicates IP67..

D4NL-4EFA-B

D4NL0015B

D4NL4EFAB

OMRON

1 Pcs.

Lock makan desert/Opening solen.24vdc 2NC/1NO + 1NC/1NO Indicates IP67 M20 Guard lock safety-door switch, D4NL, M20, 2NC/1NO + 1NC/1NO (slow-action), head: plastic, mechanical lock/24-VDC solenoid release, 10 to 115 VAC/VDC L

Automation > Position switch with guard locking
D4DL/DS/DH/DR/GL/NL/NH/NS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An electromechanical safety door switch engineered for industrial machine guarding applications where physical interlocks are mandatory to protect personnel from active hazards. This Omron D4NL-4EFA-B unit secures access gates and hinged covers on automated production lines until unsafe machine states have cleared. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Special construction
  • Type of switching contact (EF003591): Slow-action switch
  • Degree of protection (IP) (EF005474): IP67
  • Type of electric connection (EF003961): Cable entry metrical
  • Type of guard locking (EF012608): Quiescent current principle
  • With status indication (EF001602): Yes
  • Suitable for safety functions (EF001597): Yes
  • With escape release (EF007172): Yes
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 2
  • Guard locking force (EF007552): 1300 N
  • Rated operation current Ie at AC-15, 230 V (EF001385): 0 A
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.27 A
  • Number of safety auxiliary contacts (EF006940): 0
  • Rated operation current Ie at DC-13, 24 V (EF007087): 0 A
  • Rated operation current Ie at DC-13, 230 V (EF001386): 0 A

More info

▲
Door switch typeKey-operatedGuard-lockMaterial housingPlasticMaterial headPlasticAmbient temperature (operating)-10-55 °CConnection methodScrew terminalCable length0 mDirection of operationAdjustableHolding force1300 NDoor contacts NC2Door contacts NO1Lock monitor contacts NC1Lock monitor contacts NO1Lock/Release key typeStandard keyLock/Release key positionBottomLock/Release key materialResinSolenoid voltage24 VLED indicatorDegree of protection (IP)IP67Conduit sizeM20Number of conduits2Switch actionSlow actionShapeCuboidOverall length of sensor95 mmHeight of sensor35.5 mmWidth of sensor88.5 mmSwitch without actuatorLock/Release logicPower to unlock (Mechanical lock)
