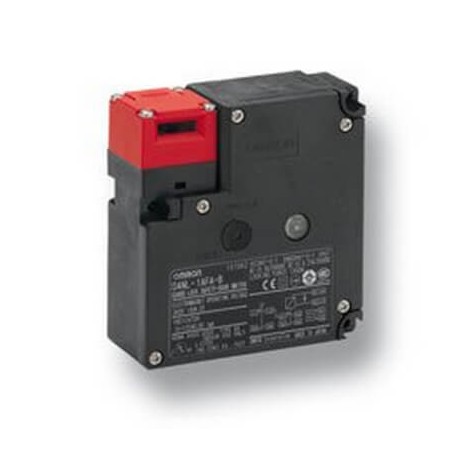

OMRON D4NL-4CFG-B D4NL-4CFG-B D4NL0033M D4NL4CFGB OMRON Lock solen 24vdc/Opening mecan 2NC+1NC/1NO LED M20 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4NL-4CFG-B D4NL0033M D4NL4CFGB OMRON Lock solen 24vdc/Opening mecan 2NC+1NC/1NO LED M20

D4NL-4CFG-B

D4NL0033M

D4NL4CFGB

OMRON

1 Pcs.

Lock solen 24vdc/Opening mecan 2NC+1NC/1NO LED M20 Guard lock safety-door switch, D4NL, M20, 2NC + 1NC/1NO (slow-action), head: plastic, 24-VDC solenoid lock/mechanical release, 10 to 115 VAC/VDC LED i

Automation > Position switch with guard locking
D4DL/DS/DH/DR/GL/NL/NH/NS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Door switch typeKey-operatedGuard-lockMaterial housingPlasticMaterial headPlasticAmbient temperature (operating)-10-55 °CConnection methodScrew terminalCable length0 mDirection of operationAdjustableHolding force1300 NDoor contacts NC2Door contacts NO0Lock monitor contacts NC1Lock monitor contacts NO1Lock/Release key typeStandard keyLock/Release key positionBottomLock/Release key materialResinSolenoid voltage24 VLED indicatorDegree of protection (IP)IP67Conduit sizeM20Number of conduits2Switch actionSlow actionShapeCuboidOverall length of sensor95 mmHeight of sensor35.5 mmWidth of sensor88.5 mmSwitch without actuatorLock/Release logicPower to lock (Solenoid lock)
ETIM for 133815 Sensors (EC002593)
Feature Name Feature Value
Degree of protection (NEMA) (EF011959) Other
Degree of protection (IP) (EF005474) IP67
Type of interface for safety communication (EF003956) None
Housing material (EF001596) Other
Type of guard locking (EF012608) Operating current principle
Explosion safety category for gas (EF003997) None
Explosion safety category for dust (EF003998) None
Construction type housing (EF004008) Special construction
Type of switching contact (EF003591) Slow-action switch
Coating housing (EF001601) Other
Type of electric connection (EF003961) Cable entry metrical
Type of interface (EF006977) None
With status indication (EF001602) Yes
With escape release (EF007172) Yes
Suitable for safety functions (EF001597) Yes
Number of contacts as change-over contact (EF008257) 0
Rated operation current Ie at DC-13, 125 V (EF007085) 0.27 A
Rated operation current Ie at DC-13, 24 V (EF007087) 0 A
Rated operation current Ie at AC-15, 125 V (EF007082) 3 A
Height of sensor (EF007283) 35.5 mm
Number of contacts as normally open contact (EF008256) 1
Guard locking force (EF007552) 1300 N
Rated operation current Ie at AC-15, 230 V (EF001385) 0 A
Number of safety auxiliary contacts (EF006940) 0
Rated operation current Ie at DC-13, 230 V (EF001386) 0 A
Number of contacts as normally closed contact (EF008255) 3
Width sensor (EF007094) 88.5 mm
Rated operation current Ie at AC-15, 24 V (EF007084) 0 A
Length of sensor (EF007334) 95 mm
Ambient temperature during operating (EF007515) -10 °C
Rated control supply voltage magnet drive DC (EF007070) 20.4 V

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
