OMRON D4NL-4AFG-B D4NL-4AFG-B D4NL0027F D4NL4AFGB OMRON Lock solen 24vdc/Opening mecan 1NC/1NO + 2NC LED M20 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

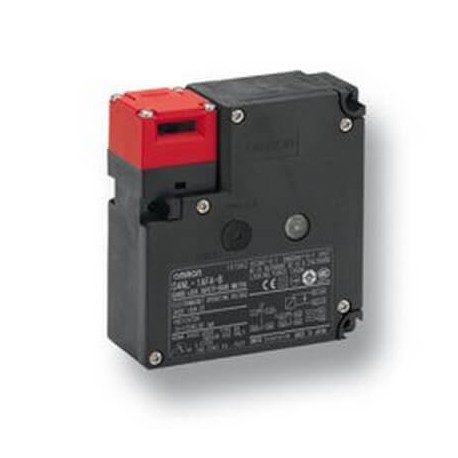

D4NL-4AFG-B D4NL0027F D4NL4AFGB OMRON Lock solen 24vdc/Opening mecan 1NC/1NO + 2NC LED M20

D4NL-4AFG-B

D4NL0027F

D4NL4AFGB

OMRON

1 Pcs.

Lock solen 24vdc/Opening mecan 1NC/1NO + 2NC LED M20 Guard lock safety-door switch, D4NL, M20, 1NC/1NO + 1NC/1NO (slow-action), head: plastic, 24-VDC solenoid lock/mechanical release, 10 to 115 VAC/VDC L

Automation > Position switch with guard locking
D4DL/DS/DH/DR/GL/NL/NH/NS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A safety door switch with guard locking mechanism designed to protect operators by preventing access to hazardous machinery until motion has completely ceased. These interlock devices are commonly installed on industrial machine guards, access hatches, and enclosure doors where interlocking safety circuits are required to prevent accidental startup during operation. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Special construction
  • Type of switching contact (EF003591): Slow-action switch
  • Degree of protection (IP) (EF005474): IP67
  • Type of electric connection (EF003961): Cable entry metrical
  • Type of guard locking (EF012608): Operating current principle
  • With status indication (EF001602): Yes
  • Suitable for safety functions (EF001597): Yes
  • With escape release (EF007172): Yes
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 2
  • Guard locking force (EF007552): 1300 N
  • Rated operation current Ie at AC-15, 230 V (EF001385): 0 A
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.27 A
  • Number of safety auxiliary contacts (EF006940): 0
  • Rated operation current Ie at DC-13, 24 V (EF007087): 0 A
  • Rated operation current Ie at DC-13, 230 V (EF001386): 0 A

More info

▲
Door switch typeKey-operatedGuard-lockMaterial housingPlasticMaterial headPlasticAmbient temperature (operating)-10-55 °CConnection methodScrew terminalCable length0 mDirection of operationAdjustableHolding force1300 NDoor contacts NC1Door contacts NO1Lock monitor contacts NC1Lock monitor contacts NO1Lock/Release key typeStandard keyLock/Release key positionBottomLock/Release key materialResinSolenoid voltage24 VLED indicatorDegree of protection (IP)IP67Conduit sizeM20Number of conduits2Switch actionSlow actionShapeCuboidOverall length of sensor95 mmHeight of sensor35.5 mmWidth of sensor88.5 mmSwitch without actuatorLock/Release logicPower to lock (Solenoid lock)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
