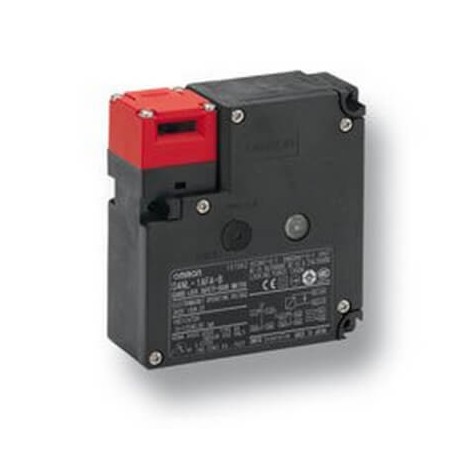

D4NL-4AFA-B D4NL0003R D4NL4AFAB 2 OMRON Lock makan desert/Opening solen.24vdc 1NC/1NO+1NC/1NO M20
D4NL-4AFA-B
D4NL0003R
D4NL4AFAB 2
OMRON
1 Pcs.
Automation > Position switch with guard locking
D4DL/DS/DH/DR/GL/NL/NH/NS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Lock solenoids are vital safety components that secure protective doors on automated production lines until moving hazards stop. The Omron D4NL-4AFA-B safeguards workers by integrating seamlessly into machine control and safety monitoring loops.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Construction type housing (EF004008): Special construction
- Type of switching contact (EF003591): Slow-action switch
- Degree of protection (IP) (EF005474): IP67
- Type of electric connection (EF003961): Cable entry metrical
- Type of guard locking (EF012608): Quiescent current principle
- With status indication (EF001602): Yes
- Suitable for safety functions (EF001597): Yes
- With escape release (EF007172): Yes
- Number of contacts as change-over contact (EF008257): 0
- Number of contacts as normally open contact (EF008256): 2
- Guard locking force (EF007552): 1300 N
- Rated operation current Ie at AC-15, 230 V (EF001385): 0 A
- Rated operation current Ie at DC-13, 125 V (EF007085): 0.27 A
- Number of safety auxiliary contacts (EF006940): 0
- Rated operation current Ie at DC-13, 24 V (EF007087): 0 A
- Rated operation current Ie at DC-13, 230 V (EF001386): 0 A
