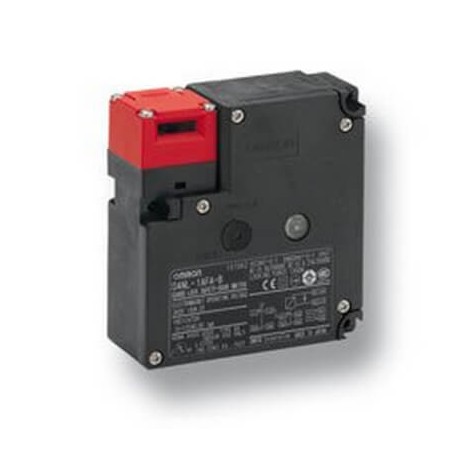

D4NL-2DFA-B4 D4NL0059D D4NL2DFAB4 OMRON Lock makan desert/Opening solen.24vdc 2NC+2NC LED G1/2
D4NL-2DFA-B4
D4NL0059D
D4NL2DFAB4
OMRON
1 Pcs.
Automation > Position switch with guard locking
D4DL/DS/DH/DR/GL/NL/NH/NS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The D4NL-2DFA-B4 D4NL0059D D4NL2DFAB4 OMRON Lock makan desert/Opening solen.24vdc 2NC+2NC LED G1/2 by Omron is a safety door-lock switch designed to secure industrial machinery guards and prevent unauthorized access during hazardous operations. Safety interlocks of this type are widely deployed across automated manufacturing cells to monitor physical barriers and protect operators by interrupting control circuits when a gate opens. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Construction type housing (EF004008): Special construction
- Type of switching contact (EF003591): Slow-action switch
- Degree of protection (IP) (EF005474): IP67
- Type of guard locking (EF012608): Quiescent current principle
- With status indication (EF001602): Yes
- Suitable for safety functions (EF001597): Yes
- With escape release (EF007172): Yes
- Number of contacts as change-over contact (EF008257): 0
- Number of contacts as normally open contact (EF008256): 0
- Guard locking force (EF007552): 1300 N
- Rated operation current Ie at AC-15, 230 V (EF001385): 0 A
- Rated operation current Ie at DC-13, 125 V (EF007085): 0.27 A
- Number of safety auxiliary contacts (EF006940): 0
- Rated operation current Ie at DC-13, 24 V (EF007087): 0 A
- Rated operation current Ie at DC-13, 230 V (EF001386): 0 A
- Number of contacts as normally closed contact (EF008255): 4
