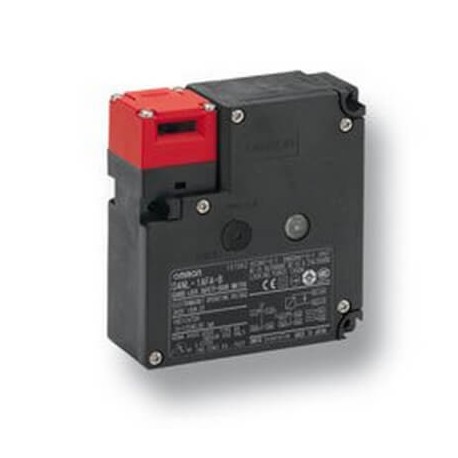

Lock solen 24vdc/Opening mecan 3nc contact forms+2NC LED PG13,5 Safety door-lock switch, PG13.5 entry, 3NC + 2NC, solenoid lock, 24 VDC Guard lock safety-door switch, PG13.5 entry, 3NC + 2NC, solenoid lock, 24 VDC

Automation > Position switch with guard locking
D4DL/DS/DH/DR/GL/NL/NH/NS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron D4NL-1HFG-B is an operating current principle guard locking safety switch used to secure doors and access panels on industrial production lines. It helps maintain regulatory compliance by keeping safety barriers locked until hazardous machine motion stops.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Special construction
  • Type of switching contact (EF003591): Slow-action switch
  • Degree of protection (IP) (EF005474): IP67
  • Type of electric connection (EF003961): Cable entry PG
  • Type of guard locking (EF012608): Operating current principle
  • With status indication (EF001602): Yes
  • Suitable for safety functions (EF001597): Yes
  • With escape release (EF007172): Yes
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 0
  • Guard locking force (EF007552): 1300 N
  • Rated operation current Ie at AC-15, 230 V (EF001385): 0 A
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.27 A
  • Number of safety auxiliary contacts (EF006940): 0
  • Rated operation current Ie at DC-13, 24 V (EF007087): 0 A
  • Rated operation current Ie at DC-13, 230 V (EF001386): 0 A

More info

▲
Door switch typeKey-operatedGuard-lockMaterial housingPlasticMaterial headPlasticAmbient temperature (operating)-10-55 °CConnection methodScrew terminalCable length0 mDirection of operationAdjustableHolding force1300 NDoor contacts NC3Door contacts NO0Lock monitor contacts NC2Lock monitor contacts NO0Lock/Release key typeStandard keyLock/Release key positionBottomLock/Release key materialResinSolenoid voltage24 VLED indicatorDegree of protection (IP)IP67Conduit sizePG13.5Number of conduits2Switch actionSlow actionShapeCuboidOverall length of sensor95 mmHeight of sensor35.5 mmWidth of sensor88.5 mmSwitch without actuatorLock/Release logicPower to lock (Solenoid lock)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
