View larger
Images are for illustrative purposes only. Please refer to data sheet for details

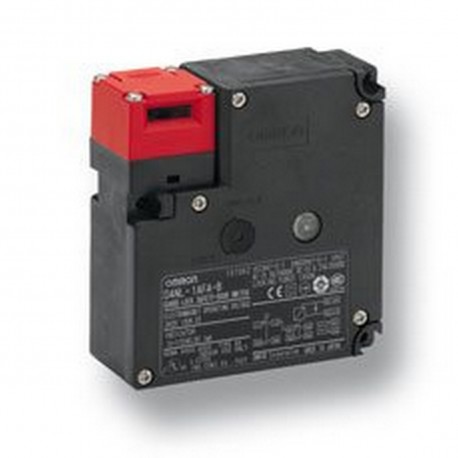

D4NL-1DFG-B D4NL0034R D4NL1DFGB OMRON Lock solen 24vdc/Opening mecan 2NC+2NC LED PG13,5
D4NL-1DFG-B
D4NL0034R
D4NL1DFGB
OMRON
1 Pcs.
Lock solen 24vdc/Opening mecan 2NC+2NC LED PG13,5
Safety door-lock switch, solenoid lock, 24 VDC, 2NC + 2NC, PG13.5 entry, Front key release
Guard lock safety-door switch, solenoid lock, 24 VDC, 2NC + 2NC, PG13.5 entry, Front key release
Automation > Position switch with guard locking
D4DL/DS/DH/DR/GL/NL/NH/NS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Specifications
| Door switch type | Key-operated |
| Guard-lock | |
| Material housing | Plastic |
| Material head | Plastic |
| Ambient temperature (operating) | -10-55 °C |
| Connection method | Terminal block |
| Cable length | 0 m |
| Direction of operation | Adjustable |
| Holding force | 1300 N |
| Door contacts NC | 2 |
| Door contacts NO | 0 |
| Lock monitor contacts NC | 2 |
| Lock monitor contacts NO | 0 |
| Lock/Release key type | Standard key |
| Lock/Release key position | Bottom |
| Solenoid voltage | 24 V |
| With LED indicator | |
| Degree of protection (IP) | IP67 |
| Conduit size | PG13.5 |
| Number of conduits | 2 |
| Switch action | Slow action |
| Shape | Cuboid |
| Overall length | 95 mm |
| Height of sensor | 35.5 mm |
| Width sensor | 88.5 mm |
| Lock/Release logic | Power to lock (Solenoid lock) |
| Feature Name | Feature Value |
|---|---|
| Explosion safety category for dust (EF003998) | None |
| Construction type housing (EF004008) | Special construction |
| Type of switching contact (EF003591) | Slow-action switch |
| Degree of protection (NEMA) (EF011959) | Other |
| Coating housing (EF001601) | Other |
| Degree of protection (IP) (EF005474) | IP67 |
| Type of interface for safety communication (EF003956) | None |
| Type of electric connection (EF003961) | Cable entry PG |
| Type of interface (EF006977) | None |
| Housing material (EF001596) | Other |
| Type of guard locking (EF012608) | Operating current principle |
| Explosion safety category for gas (EF003997) | None |
| With status indication (EF001602) | Yes |
| Suitable for safety functions (EF001597) | Yes |
| With escape release (EF007172) | Yes |
| Number of contacts as change-over contact (EF008257) | 0 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Guard locking force (EF007552) | 1300 N |
| Rated operation current Ie at AC-15, 230 V (EF001385) | 0 A |
| Rated operation current Ie at DC-13, 125 V (EF007085) | 0.27 A |
| Number of safety auxiliary contacts (EF006940) | 0 |
| Rated operation current Ie at DC-13, 24 V (EF007087) | 0 A |
| Rated operation current Ie at DC-13, 230 V (EF001386) | 0 A |
| Number of contacts as normally closed contact (EF008255) | 4 |
| Rated operation current Ie at AC-15, 125 V (EF007082) | 3 A |
| Width sensor (EF007094) | 88.5 mm |
| Rated operation current Ie at AC-15, 24 V (EF007084) | 0 A |
| Height of sensor (EF007283) | 35.5 mm |
| Length of sensor (EF007334) | 95 mm |
| Ambient temperature during operating (EF007515) | -10 °C |
| Rated control supply voltage magnet drive DC (EF007070) | 20.4 V |
