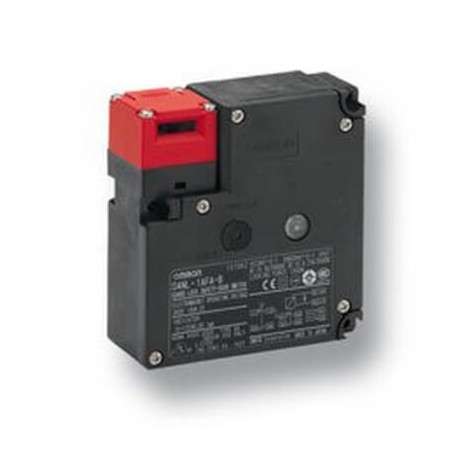

Lock solen 24vdc/Opening mecan 2NC+2NC LED PG13,5 Safety door-lock switch, mechanical lock, 24 VDC, 2NC + 2NC, 10 A, PG 13.5 entry Guard lock safety-door switch, mechanical lock, 24 VDC, 2NC + 2NC, 10 A, PG 13.5 entry

Automation > Position switch with guard locking
D4DL/DS/DH/DR/GL/NL/NH/NS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron D4NL-1DFA-B is a guard locking safety-door switch used to prevent machine access during hazardous operations. Safety switches of this type maintain interlocking control on protective barriers, ensuring equipment halts before an operator can enter a restricted zone.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Special construction
  • Type of switching contact (EF003591): Slow-action switch
  • Degree of protection (IP) (EF005474): IP67
  • Type of electric connection (EF003961): Cable entry PG
  • Type of guard locking (EF012608): Quiescent current principle
  • With status indication (EF001602): Yes
  • Suitable for safety functions (EF001597): Yes
  • With escape release (EF007172): Yes
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 0
  • Guard locking force (EF007552): 1300 N
  • Rated operation current Ie at AC-15, 230 V (EF001385): 0 A
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.27 A
  • Number of safety auxiliary contacts (EF006940): 0
  • Rated operation current Ie at DC-13, 24 V (EF007087): 0 A
  • Rated operation current Ie at DC-13, 230 V (EF001386): 0 A

More info

▲
Door switch typeKey-operatedGuard-lockMaterial housingPlasticMaterial headPlasticAmbient temperature (operating)-10-55 °CConnection methodScrew terminalCable length0 mDirection of operationAdjustableHolding force1300 NDoor contacts NC2Door contacts NO0Lock monitor contacts NC2Lock monitor contacts NO0Lock/Release key typeStandard keyLock/Release key positionBottomLock/Release key materialResinSolenoid voltage24 VLED indicatorDegree of protection (IP)IP67Conduit sizePG13.5Number of conduits2Switch actionSlow actionShapeCuboidOverall length of sensor95 mmHeight of sensor35.5 mmWidth of sensor88.5 mmSwitch without actuatorLock/Release logicPower to unlock (Mechanical lock)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
