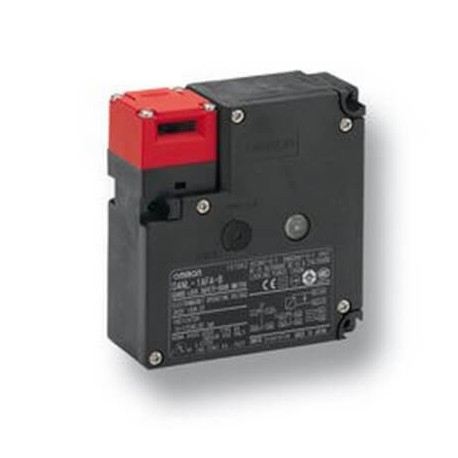

D4NL-1CFG-B D4NL0031D D4NL1CFGB OMRON Lock solen 24vdc/Opening mecan 2NC+1NC/1NO LED PG13,5

D4NL-1CFG-B

D4NL0031D

D4NL1CFGB

OMRON

1 Pcs.

Lock solen 24vdc/Opening mecan 2NC+1NC/1NO LED PG13,5 Safety door-lock switch, solenoid lock, 24 VDC, 2NC + 1NC/1NO, 10 A, PG 13.5 entry Guard lock safety-door switch, solenoid lock, 24 VDC, 2NC + 1NC/1NO, 10 A, PG 13.5 entry

Automation > Position switch with guard locking
D4DL/DS/DH/DR/GL/NL/NH/NS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron D4NL-1CFG-B lock solenoid is an industrial safety door-lock switch used to prevent access to hazardous machinery until operational cycles complete and hazards subside. These components are deployed across automated production lines to protect operators by interlocking protective guards and monitoring access points. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Special construction
  • Type of switching contact (EF003591): Slow-action switch
  • Degree of protection (IP) (EF005474): IP67
  • Type of electric connection (EF003961): Cable entry PG
  • Type of guard locking (EF012608): Operating current principle
  • With status indication (EF001602): Yes
  • Suitable for safety functions (EF001597): Yes
  • With escape release (EF007172): Yes
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Guard locking force (EF007552): 1300 N
  • Rated operation current Ie at AC-15, 230 V (EF001385): 0 A
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.27 A
  • Number of safety auxiliary contacts (EF006940): 0
  • Rated operation current Ie at DC-13, 24 V (EF007087): 0 A
  • Rated operation current Ie at DC-13, 230 V (EF001386): 0 A

More info

▲
Door switch typeKey-operatedGuard-lockMaterial housingPlasticMaterial headPlasticAmbient temperature (operating)-10-55 °CConnection methodScrew terminalCable length0 mDirection of operationAdjustableHolding force1300 NDoor contacts NC2Door contacts NO0Lock monitor contacts NC1Lock monitor contacts NO1Lock/Release key typeStandard keyLock/Release key positionBottomLock/Release key materialResinSolenoid voltage24 VLED indicatorDegree of protection (IP)IP67Conduit sizePG13.5Number of conduits2Switch actionSlow actionShapeCuboidOverall length of sensor95 mmHeight of sensor35.5 mmWidth of sensor88.5 mmSwitch without actuatorLock/Release logicPower to lock (Solenoid lock)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
