View larger
Images are for illustrative purposes only. Please refer to data sheet for details

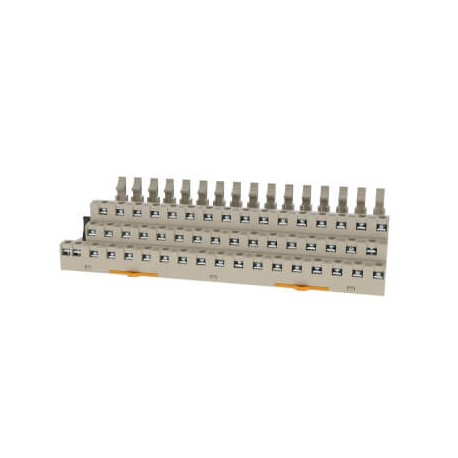

G70A-ZOC16-4 DC24 G70A7003F G70AZOC164DC24,1 OMRON Module 16 relay, PNP output 24vdc
G70A-ZOC16-4 DC24
G70A7003F
G70AZOC164DC24.1
OMRON
1 Pcs.
Module 16 relay, PNP output 24vdc
Output Terminal Block for Relay or SSR, 16-point, for PNP output units
Automation > Interface module
Other
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
3 wiring connection – power supply terminalConnector typeMIL (plug not included)External connection polarityPNPPositions per I/O connector20Relay premountedTerminal typeRelay wiring interfaceType of I/O connectionOutputType of relayElectromechanical relay/Solid-state relayWiring methodScrew
| Feature Name | Feature Value |
|---|---|
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
| Type of electrical connection, field-sided (EF005525) | Screw connection |
| Pollution degree (EF006786) | 1 |
| Type of electrical connection, control sided (EF008549) | Plug-in connection |
| Rated voltage (EF000228) | 24 V |
| Rated current (EF000227) | 0.028 A |
| Width (EF000008) | 234 mm |
| Height (EF000040) | 75 mm |
| Number of poles (EF001391) | 16 |
| Depth (EF000049) | 64 mm |
