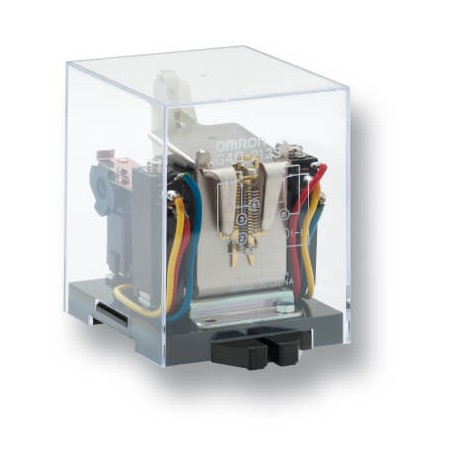

OMRON G4Q-212S 12VDC G4Q-212S 12VDC G4Q 1165M G4Q212SDC12 OMRON Relay ratchet DPDT Plug-in View larger
Images are for illustrative purposes only. Please refer to data sheet for details

G4Q-212S 12VDC G4Q 1165M G4Q212SDC12 OMRON Relay ratchet DPDT Plug-in

G4Q-212S 12VDC

G4Q 1165M

G4Q212SDC12

OMRON

1 Pcs.

Relay ratchet DPDT Plug-in DPDT Plug-in Ratchet Relay

Automation > Switching relay
Other

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron G4Q-212S 12VDC latching ratchet relay provides reliable alternate switching operations for automated industrial machinery. Ratchet relays toggle their contact positions reciprocally with each incoming trigger pulse, making them ideal for sequential control tasks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Omron
  • Manufacturer part number: G4Q-212S 12VDC
  • Catalogue code: G4Q 1165M
  • Catalogue title: G4Q-212S 12VDC G4Q 1165M G4Q212SDC12 OMRON Relay ratchet DPDT Plug-in
  • Product description: Features Unique ratchet relay Each contact in the double-pole contact mechanism performs alternate make-brake operation at each pulse input and is thus ideal for alternate operation or transfer/switching operation of a m
  • Manufacturer summary: Relay ratchet DPDT Plug-in DPDT Plug-in Ratchet Relay

More info

▲
Features

Unique ratchet relay

Each contact in the double-pole contact mechanism performs alternate make-brake operation at each pulse input and is thus ideal for alternate operation or transfer/switching operation of a motor.

  • Positive operation is assured due to the unique ratchet mechanism
  • Satisfies dielectric strength of 2,000VAC
  • Low power consumption (AC: approx. 6.4VA; DC: approx. 3.9W)
  • DPDT contact configuration
