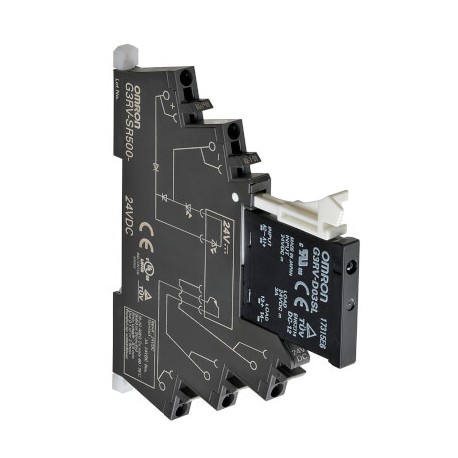

OMRON G3RV-SR700-A 24VDC G3RV-SR700-A 24VDC G3RV5033E G3RVSR700ADC24 OMRON TRIAC 2ND Relay terminal block Base+Screws 24vdc With step.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

G3RV-SR700-A 24VDC G3RV5033E G3RVSR700ADC24 OMRON TRIAC 2ND Relay terminal block Base+Screws 24vdc With step..

G3RV-SR700-A 24VDC

G3RV5033E

G3RVSR700ADC24

OMRON

10 Pcs.

TRIAC 2ND Relay terminal block Base+Screws 24vdc With step-by-zero TRIAC 2A Terminal Relay + Base Screws 24Vdc With Zero Pitch

Automation > Solid state relay
G3RV-SR

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron G3RV-SR700-A 24VDC is a compact relay terminal block designed to interface control signals between automation controllers and industrial field devices. Terminal block relays simplify cabinet wiring while providing secure galvanic isolation in complex electrical distribution networks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • 12 DC: 5 to 24 VDC
  • 24 DC: G3RV-SR700-D DC24
  • 110 AC: G3RV-SR700-D AC110
  • 230 AC: G3RV-SR700-D AC230
  • 24 AC/DC: G3RV-SR700-D AC/DC24
  • 48 AC/DC: G3RV-SR700-D AC/DC48
  • 12 DC: 100 to 240 VAC (50/60 Hz)
  • 24 DC: G3RV-SR700-A DC24
  • 110 AC: G3RV-SR700-A AC110
  • 230 AC: G3RV-SR700-A AC230
  • 24 AC/DC: G3RV-SR700-A AC/DC24
  • 48 AC/DC: G3RV-SR700-A AC/DC48
  • 12 DC: Without zero cross
  • 24 DC: G3RV-SR700-AL DC24
  • 110 AC: G3RV-SR700-AL AC110
  • 230 AC: G3RV-SR700-AL AC230

More info

▲
Features

Industrial 6 mm “slim” SSR

As well as being slim and thus saving panel space, G3RV relays are very strong, have a large contact area and non-bendable pins. Connection to a PLC is easy and achieved faultlessly in a few seconds via click connectors. In addition, power switching in G3RV relays with DC outputs is managed by a MOSFET in the output, which has ideal heat dissipation characteristics.

  • G2RVcompatible
  • LED indicator built in SSR
  • Push-in plus technology and accessories for easy wiring

Ordering information

Input rated voltage

Output rated voltage

Output load voltage range

Output load current

Functions

Order code

Screw technology

Push-In plus technology

12 DC

5 to 24 VDC

3 to 26.4 VDC

100 μA to 3 A
(Ambient temperature = 25°C)

−

G3RV-SR700-D DC12

G3RV-SR500-D DC12

24 DC

G3RV-SR700-D DC24

G3RV-SR500-D DC24

110 AC

G3RV-SR700-D AC110

G3RV-SR500-D AC110

230 AC

G3RV-SR700-D AC230

G3RV-SR500-D AC230

24 AC/DC

G3RV-SR700-D AC/DC24

G3RV-SR500-D AC/DC24

48 AC/DC

G3RV-SR700-D AC/DC48

G3RV-SR500-D AC/DC48

12 DC

100 to 240 VAC
(50/60 Hz)

75 to 264 VAC
(50/60 Hz)

0.1 to 2 A
(Ambient temperature = 25°C)

With zero-cross

G3RV-SR700-A DC12

G3RV-SR500-A DC12

24 DC

G3RV-SR700-A DC24

G3RV-SR500-A DC24

110 AC

G3RV-SR700-A AC110

G3RV-SR500-A AC110

230 AC

G3RV-SR700-A AC230

G3RV-SR500-A AC230

24 AC/DC

G3RV-SR700-A AC/DC24

G3RV-SR500-A AC/DC24

48 AC/DC

G3RV-SR700-A AC/DC48

G3RV-SR500-A AC/DC48

12 DC

Without zero cross

G3RV-SR700-AL DC12

G3RV-SR500-AL DC12

24 DC

G3RV-SR700-AL DC24

G3RV-SR500-AL DC24

110 AC

G3RV-SR700-AL AC110

G3RV-SR500-AL AC110

230 AC

G3RV-SR700-AL AC230

G3RV-SR500-AL AC230

24 AC/DC

G3RV-SR700-AL AC/DC24

G3RV-SR500-AL AC/DC24

48 AC/DC

G3RV-SR700-AL AC/DC48

G3RV-SR500-AL AC/DC48

Note:100 V, 200 V available on request

Accessories

Further more information on the line-up and specifications of accessories, please enter “R427” in the search field on our website industrial.omron.eu

Specifications

Order code

G3RV-SR700/500-A

G3RV-SR700/500-D

Output element

TRIAC

MOSFET

Output ON voltage drop

1.6 V rms max.

0.9 V max.

Leakage current

5 mA max. (at 200 VAC 50/60 Hz)

10 µA max. (at 24 VDC)

Operating indicator

Yes

Ambient temperature

Storage

−30~+100°C (with no icing or condensation)

Operating

−30~+55°C (with no icing or condensation)
