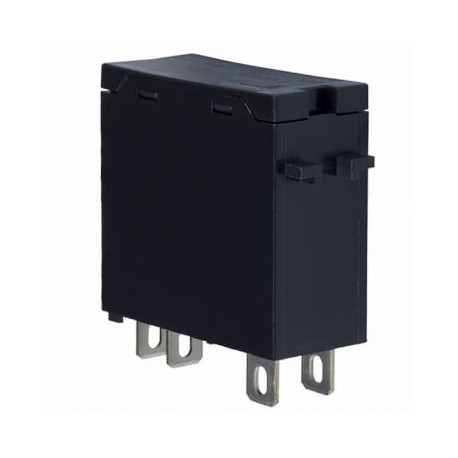

OMRON G3R-IDZR1SN-UTU 5VDC G3R-IDZR1SN-UTU 5VDC G3R 1125F G3RIDZR1SNUTUDC5 OMRON Microrruptor thumbnail View larger
Images are for illustrative purposes only. Please refer to data sheet for details

G3R-IDZR1SN-UTU 5VDC G3R 1125F G3RIDZR1SNUTUDC5 OMRON Microrruptor thumbnail

G3R-IDZR1SN-UTU 5VDC

G3R 1125F

G3RIDZR1SNUTUDC5

OMRON

12 Pcs.

Microrruptor thumbnail SSR (input), plug-in, 0.1-100 mA (4-32 VDC), high-speed (1 kHz), 5 VDC

Automation > Solid state relay
G3R

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron G3R-IDZR1SN-UTU 5VDC DC solid-state relay provides galvanic isolation and rapid switching for low-voltage signal processing within electronic control architectures. These compact components are frequently integrated into PLC input-output channels to interface delicate logic boards with field devices.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (operating voltage) (EF005294): DC
  • Voltage type for actuating (EF008242): DC
  • Switching at zero-crossing (EF011956): No
  • Modular version (EF001126): No
  • Rated operation current Ie at AC-1 (EF006069): 0.1 A
  • Number of phases (EF000351): 1
  • Operating voltage DC (EF008208): 4 V
  • Rated control supply voltage DC (EF003980): 5 V

More info

▲
Number of phases1Mounting methodOtherTerminal typePush-inComplete with socketLED indicatorRated operational voltage, DC4-32 VOperating voltage range, DC4-32 VRated operation current Ie at AC-10.1 AProduct Height (unpacked)29 mmProduct Width (unpacked)13 mmProduct Depth (unpacked)28 mmSupply voltage DC5-5 VControl current max.8 mAMaximum operating temperature80 °CMinimum operating temperature-30 °CIsolationPhotocouplerSwitching at zero-crossing

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
