View larger
Images are for illustrative purposes only. Please refer to data sheet for details

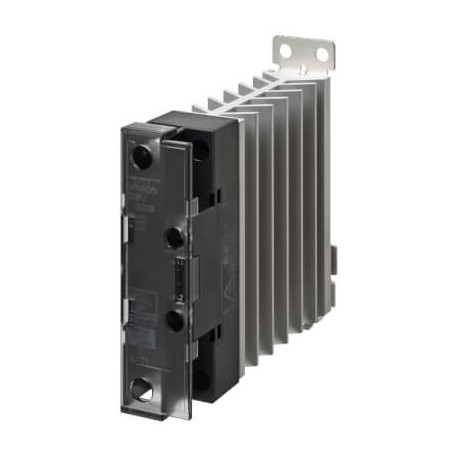

G3PJ-525B DC12-24 G3PJ2012M G3PJ525BDC1224 OMRON Solid State relay 27A, 100-480vac single Phase DIN Rail Wit..
G3PJ-525B DC12-24
G3PJ2012M
G3PJ525BDC1224
OMRON
10 Pcs.
Solid State relay 27A, 100-480vac single Phase DIN Rail With disp
Solid-state relay, 1 phase, 27A, 100-480 VAC, with heat sink, DIN rail mount, input voltage 12-24V DC
Automation > Solid state relay
G3PJ
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
ApplicationON/OFF controlNumber of phases1Number of poles1Mounting methodDIN rail/screwTerminal typeScrewComplete with socketLED indicatorRated operational voltage, AC100-480 VOperating voltage range, AC75-528 VRated operation current Ie at AC-127 ARated load current Close mounting25 APermissible I²t value6600 A²sProduct Height (unpacked)100 mmProduct Width (unpacked)22.5 mmProduct Depth (unpacked)100 mmSupply voltage DC12-24 VControl current max.7 mAMust operate voltage max.9.6 VMust release voltage min.1 VMaximum operating temperature80 °CMinimum operating temperature-30 °CIsolationPhototriacSwitching at zero-crossingCommunication port(s)None
| Feature Name | Feature Value |
|---|---|
| Voltage type (operating voltage) (EF005294) | AC |
| Voltage type for actuating (EF008242) | AC |
| Modular version (EF001126) | No |
| Rated operation current Ie at AC-1 (EF006069) | 27 A |
| Number of phases (EF000351) | 1 |
| Rated control supply voltage DC (EF003980) | 12 V |
| Operating voltage AC 50 Hz (EF008206) | 100 V |
| Operating voltage AC 60 Hz (EF008207) | 100 V |
