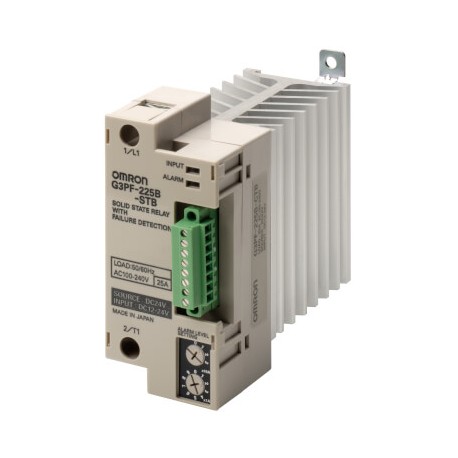

OMRON G3PF-235B 24VDC G3PF-235B 24VDC G3PF0006H G3PF235BDC24 OMRON 35A 240VAC 1 Output Screws View larger
Images are for illustrative purposes only. Please refer to data sheet for details

G3PF-235B 24VDC G3PF0006H G3PF235BDC24 OMRON 35A 240VAC 1 Output Screws

G3PF-235B 24VDC

G3PF0006H

G3PF235BDC24

OMRON

1 Pcs.

35A 240VAC 1 Output Screws Solid-state relay 35 A, 100 to 240 VAC, with built in current transformer, M3 terminals, 1 alarm

Automation > Solid state relay
G3PF

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron G3PF-235B 24VDC functions as an integrated solid state relay equipped with built-in current monitoring for sophisticated heater control. Industrial automation panels use these specialized relays to detect heater breaks and prevent process errors. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Omron
  • Manufacturer part number: G3PF-235B 24VDC
  • Current rating: 35 A
  • Voltage rating: 100 to 240 VAC
  • Outputs: 1 Output
  • Terminals: M3 terminals
  • Extra feature: built in current transformer, 1 alarm

More info

▲
ApplicationON/OFF controlMounting methodDIN rail/screwTerminal typeScrewComplete with socketLED indicatorRated operational voltage, AC100-240 VOperating voltage range, AC75-264 VControl current max.10 mAMust operate voltage max.9.6 VMust release voltage min.1 VMaximum operating temperature60 °CMinimum operating temperature-20 °CIsolationPhototriacFunctionsHB/HS alarm for 1-phase heaters, HB/HS alarm for 3-phase heaters, Heater burnout detectionNumber of phases1Rated operation current Ie at AC-135 AProduct Height (unpacked)100 mmProduct Width (unpacked)55 mmProduct Depth (unpacked)130 mmSupply voltage DC9.6-26.4 VSwitching at zero-crossing

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
