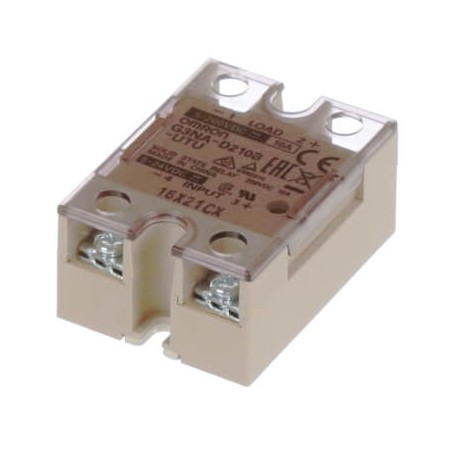

OMRON G3NA-D210B-UTU 5-24VDC G3NA-D210B-UTU 5-24VDC G3NA7126G G3NAD210BUTUDC524BYOMZ OMRON Solid state relay, surface mounting, 1-pole, 1.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

G3NA-D210B-UTU 5-24VDC G3NA7126G G3NAD210BUTUDC524BYOMZ OMRON Solid state relay, surface mounting, 1-pole, 1..

G3NA-D210B-UTU 5-24VDC

G3NA7126G

G3NAD210BUTUDC524BYOMZ

OMRON

1 Pcs.

Solid state relay, surface mounting, 1-pole, 10 A, 5 to 200 VDC

Automation > Solid state relay
G3N

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The G3NA-D210B-UTU 5-24VDC Omron solid state relay offers dependable surface-mounted switching for single-phase direct current industrial control schemes. Solid state relays eliminate mechanical arcing, making them ideal for high-speed automated production lines and sensitive electronic automation circuits.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (operating voltage) (EF005294): DC
  • Voltage type for actuating (EF008242): DC
  • Switching at zero-crossing (EF011956): No
  • Modular version (EF001126): No
  • Number of phases (EF000351): 1
  • Operating voltage DC (EF008208): 5 V
  • Rated control supply voltage DC (EF003980): 5 V

More info

▲
ApplicationON/OFF controlNumber of phases1Mounting methodScrewTerminal typeScrewLED indicatorRated operational voltage, DC5-200 VOperating voltage range, DC4-220 VRated operation current Ie at AC-120 AProduct Height (unpacked)58 mmProduct Width (unpacked)43 mmProduct Depth (unpacked)27 mmSupply voltage DC5-24 VControl current max.5 mAMust operate voltage max.4 VMust release voltage min.1 VMaximum operating temperature80 °CMinimum operating temperature-30 °CSwitching at zero-crossing
