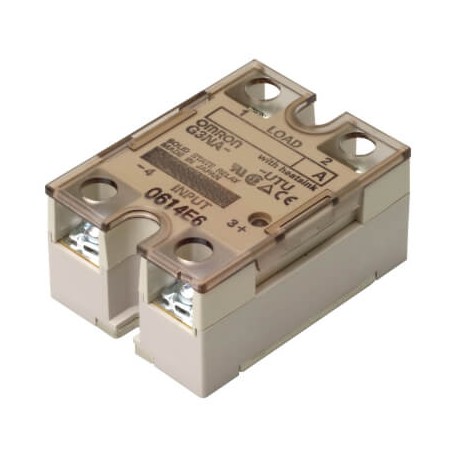

OMRON G3NA-490B-UTU-2 5-24VDC G3NA-490B-UTU-2 5-24VDC G3NA7124M G3NA490BUTU2DC524BYOMZ OMRON Solid state relay, surface mounting, zero cro.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

G3NA-490B-UTU-2 5-24VDC G3NA7124M G3NA490BUTU2DC524BYOMZ OMRON Solid state relay, surface mounting, zero cro..

G3NA-490B-UTU-2 5-24VDC

G3NA7124M

G3NA490BUTU2DC524BYOMZ

OMRON

1 Pcs.

Solid state relay, surface mounting, zero crossing, 1-pole, 90 A, 200 to 480 VAC

Automation > Solid state relay
G3N

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron part number G3NA-490B-UTU-2 5-24VDC G3NA7124M G3NA490BUTU2DC524BYOMZ OMRON Solid state relay, surface mounting, zero cro.. functions as a robust solid-state relay built for surface mounting in industrial control panels. Surface-mount relays provide secure thermal transfer and high-amperage switching capabilities for heavy automated production lines. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (operating voltage) (EF005294): AC
  • Voltage type for actuating (EF008242): AC
  • Modular version (EF001126): No
  • Rated operation current Ie at AC-1 (EF006069): 7 A
  • Number of phases (EF000351): 1
  • Rated operation current Ie at AC-3 (EF006070): 90 A
  • Rated control supply voltage DC (EF003980): 5 V
  • Operating voltage AC 50 Hz (EF008206): 200 V
  • Operating voltage AC 60 Hz (EF008207): 200 V

More info

▲
ApplicationON/OFF controlNumber of phases1Mounting methodDIN rail/screwTerminal typeScrewLED indicatorRated operational voltage, AC200-480 VOperating voltage range, AC180-528 VRated operation current Ie at AC-17 AProduct Height (unpacked)58 mmProduct Width (unpacked)43 mmProduct Depth (unpacked)30 mmSupply voltage DC5-24 VMust operate voltage max.4 VMust release voltage min.1 VMaximum operating temperature80 °CMinimum operating temperature-30 °C
