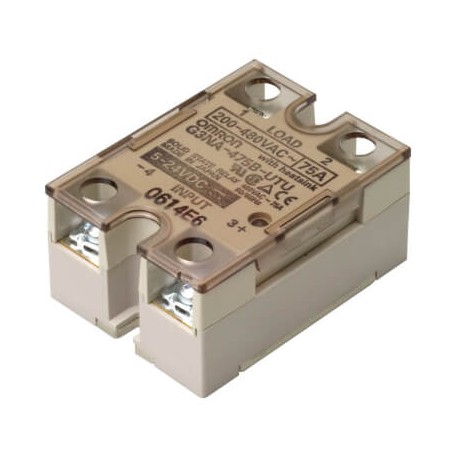

OMRON G3NA-475B-UTU-2 5-24VDC G3NA-475B-UTU-2 5-24VDC G3NA7122D G3NA475BUTU2DC524BYOMZ OMRON Solid state relay, surface mounting, zero cro.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

G3NA-475B-UTU-2 5-24VDC G3NA7122D G3NA475BUTU2DC524BYOMZ OMRON Solid state relay, surface mounting, zero cro..

G3NA-475B-UTU-2 5-24VDC

G3NA7122D

G3NA475BUTU2DC524BYOMZ

OMRON

10 Pcs.

Solid state relay, surface mounting, zero crossing, 1-pole, 75 A, 200 to 480 VAC

Automation > Solid state relay
G3N

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ApplicationON/OFF controlNumber of phases1Mounting methodDIN rail/screwTerminal typeScrewLED indicatorRated operational voltage, AC200-480 VOperating voltage range, AC180-528 VRated operation current Ie at AC-17 AProduct Height (unpacked)58 mmProduct Width (unpacked)43 mmProduct Depth (unpacked)30 mmSupply voltage DC5-24 VMust operate voltage max.4 VMust release voltage min.1 VMaximum operating temperature80 °CMinimum operating temperature-30 °C
ETIM for 690634 Relays (EC002055)
Feature Name Feature Value
Voltage type (operating voltage) (EF005294) AC
Voltage type for actuating (EF008242) AC
Modular version (EF001126) No
Rated operation current Ie at AC-1 (EF006069) 7 A
Number of phases (EF000351) 1
Rated operation current Ie at AC-3 (EF006070) 75 A
Rated control supply voltage DC (EF003980) 5 V
Operating voltage AC 50 Hz (EF008206) 200 V
Operating voltage AC 60 Hz (EF008207) 200 V
