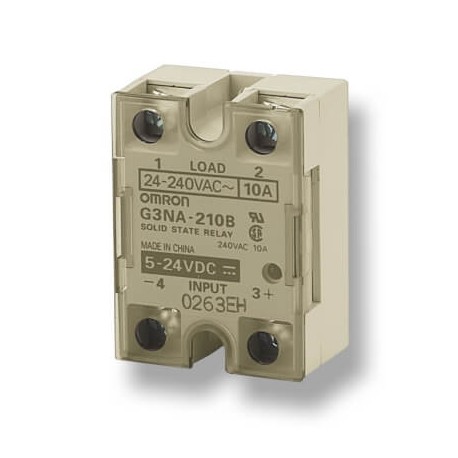

OMRON G3NA-290B-UTU-2 5-24VDC G3NA-290B-UTU-2 5-24VDC G3NA7112G G3NA290BUTU2DC524BYOMZ OMRON Solid state relay, surface mounting, zero cro.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

G3NA-290B-UTU-2 5-24VDC G3NA7112G G3NA290BUTU2DC524BYOMZ OMRON Solid state relay, surface mounting, zero cro..

G3NA-290B-UTU-2 5-24VDC

G3NA7112G

G3NA290BUTU2DC524BYOMZ

OMRON

10 Pcs.

Solid state relay, surface mounting, zero crossing, 1-pole, 90 A, 24 to 240 VAC

Automation > Solid state relay
G3N

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Engineered by Omron, the G3NA-290B-UTU-2 5-24VDC is a solid state relay designed for surface mounting in automated control cabinets. Industrial facilities rely on these semiconductor switching devices to cycle power to resistive and inductive loads safely and silently, reducing maintenance downtime. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (operating voltage) (EF005294): DC
  • Voltage type for actuating (EF008242): DC
  • Switching at zero-crossing (EF011956): Yes
  • Modular version (EF001126): No
  • Rated operation current Ie at AC-1 (EF006069): 7 A
  • Number of phases (EF000351): 1
  • Operating voltage DC (EF008208): 24 V
  • Rated control supply voltage DC (EF003980): 5 V

More info

▲
ApplicationON/OFF controlNumber of phases1Mounting methodDIN rail/screwTerminal typeScrewLED indicatorRated operational voltage, AC24-240 VOperating voltage range, AC19-264 VRated operation current Ie at AC-17 AProduct Height (unpacked)58 mmProduct Width (unpacked)43 mmProduct Depth (unpacked)30 mmSupply voltage DC5-24 VMust operate voltage max.4 VMust release voltage min.1 VMaximum operating temperature80 °CMinimum operating temperature-30 °CSwitching at zero-crossing

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
