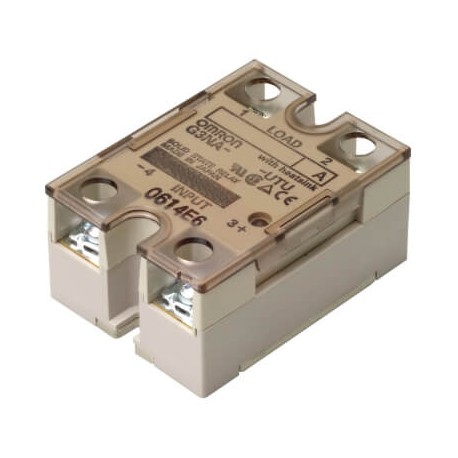

OMRON G3NA-250B-UTU 5-24VDC G3NA-250B-UTU 5-24VDC G3NA7108R G3NA250BUTUDC524BYOMZ OMRON Solid state relay, surface mounting, zero crossi.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

G3NA-250B-UTU 5-24VDC G3NA7108R G3NA250BUTUDC524BYOMZ OMRON Solid state relay, surface mounting, zero crossi..

G3NA-250B-UTU 5-24VDC

G3NA7108R

G3NA250BUTUDC524BYOMZ

OMRON

10 Pcs.

Solid state relay, surface mounting, zero crossing, 1-pole, 50 A, 5 to 24 VDC

Automation > Solid state relay
G3N

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

G3NA-250B-UTU 5-24VDC Omron solid state relay is a single-phase component deployed for contactless switching of AC loads in automated thermal and motor control setups. Solid state solutions prevent contact arc wear and ensure silent, high-frequency operation in industrial environments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (operating voltage) (EF005294): AC
  • Voltage type for actuating (EF008242): AC
  • Modular version (EF001126): No
  • Rated operation current Ie at AC-1 (EF006069): 6 A
  • Number of phases (EF000351): 1
  • Rated operation current Ie at AC-3 (EF006070): 50 A
  • Rated control supply voltage DC (EF003980): 5 V
  • Operating voltage AC 50 Hz (EF008206): 24 V
  • Operating voltage AC 60 Hz (EF008207): 24 V

More info

▲
ApplicationON/OFF controlNumber of phases1Mounting methodDIN rail/screwTerminal typeScrewLED indicatorRated operational voltage, AC24-240 VOperating voltage range, AC19-264 VRated operation current Ie at AC-16 AProduct Height (unpacked)58 mmProduct Width (unpacked)43 mmProduct Depth (unpacked)27 mmSupply voltage DC5-24 VMust operate voltage max.4 VMust release voltage min.1 VMaximum operating temperature80 °CMinimum operating temperature-30 °C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
