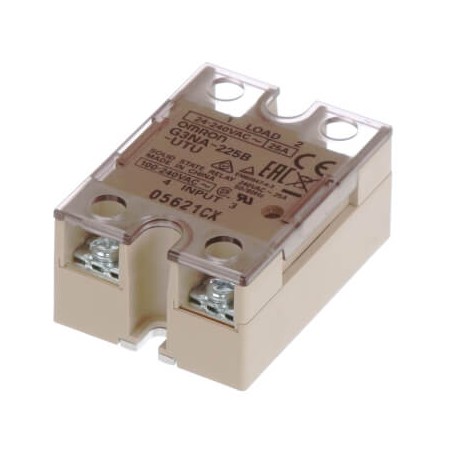

OMRON G3NA-225B-UTU 100-240VAC G3NA-225B-UTU 100-240VAC G3NA7106B G3NA225BUTUAC100240BYOMZ OMRON Solid state relay, surface mounting, zero .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

G3NA-225B-UTU 100-240VAC G3NA7106B G3NA225BUTUAC100240BYOMZ OMRON Solid state relay, surface mounting, zero ..

G3NA-225B-UTU 100-240VAC

G3NA7106B

G3NA225BUTUAC100240BYOMZ

OMRON

1 Pcs.

Solid state relay, surface mounting, zero crossing, 1-pole, 25 A, 24 to 240 VAC

Automation > Solid state relay
G3N

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron G3NA-225B-UTU 100-240VAC solid state relay is a surface mounting component designed for frequent switching of industrial electrical loads without mechanical wear. Semiconductor relays of this type are widely utilized in automation systems to govern heating elements, motors, and lighting circuits where rapid cycling and silent operation are required.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (operating voltage) (EF005294): AC
  • Voltage type for actuating (EF008242): AC
  • Modular version (EF001126): No
  • Rated operation current Ie at AC-1 (EF006069): 4 A
  • Number of phases (EF000351): 1
  • Rated operation current Ie at AC-3 (EF006070): 25 A
  • Rated control supply voltage AC 60 Hz (EF003979): 200 V
  • Rated control supply voltage AC 50 Hz (EF003978): 100 V
  • Operating voltage AC 50 Hz (EF008206): 24 V
  • Operating voltage AC 60 Hz (EF008207): 24 V

More info

▲
ApplicationON/OFF controlNumber of phases1Mounting methodScrewTerminal typeScrewLED indicatorRated operational voltage, AC24-240 VOperating voltage range, AC19-264 VRated operation current Ie at AC-14 ASupply voltage AC100-240 VMust operate voltage max.75 VMust release voltage min.20 VMaximum operating temperature80 °CMinimum operating temperature-30 °C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
