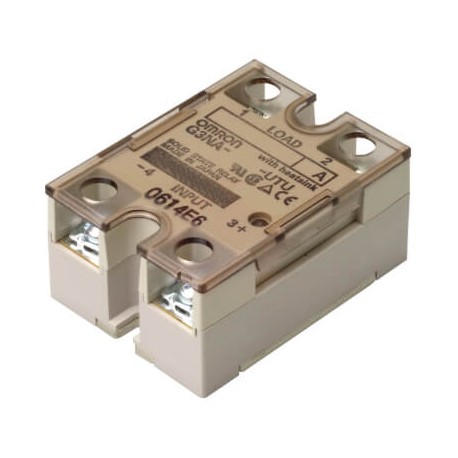

OMRON G3NA-205B-UTU 5-24VDC G3NA-205B-UTU 5-24VDC G3NA7016C G3NA205BUTUDC524BYOMZ OMRON Solid state relay, surface mounting,zero crossin.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

G3NA-205B-UTU 5-24VDC G3NA7016C G3NA205BUTUDC524BYOMZ OMRON Solid state relay, surface mounting,zero crossin..

G3NA-205B-UTU 5-24VDC

G3NA7016C

G3NA205BUTUDC524BYOMZ

OMRON

10 Pcs.

Solid state relay, surface mounting,zero crossing, 1-pole, 5 A, 24 to 240 VAC

Automation > Solid state relay
G3N

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ApplicationON/OFF controlNumber of phases1Mounting methodScrewTerminal typeScrewLED indicatorRated operational voltage, AC24-240 VOperating voltage range, AC19-264 VRated operation current Ie at AC-15 AProduct Height (unpacked)58 mmProduct Width (unpacked)43 mmProduct Depth (unpacked)27 mmSupply voltage DC5-24 VControl current max.7 mAMust operate voltage max.4 VMust release voltage min.1 VMaximum operating temperature80 °CMinimum operating temperature-30 °CSwitching at zero-crossing
ETIM for 690651 Relays (EC002055)
Feature Name Feature Value
Voltage type (operating voltage) (EF005294) AC
Voltage type for actuating (EF008242) AC
Switching at zero-crossing (EF011956) Yes
Modular version (EF001126) No
Rated operation current Ie at AC-1 (EF006069) 3 A
Number of phases (EF000351) 1
Rated operation current Ie at AC-3 (EF006070) 5 A
Rated control supply voltage DC (EF003980) 5 V
Operating voltage AC 50 Hz (EF008206) 24 V
Operating voltage AC 60 Hz (EF008207) 24 V

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
