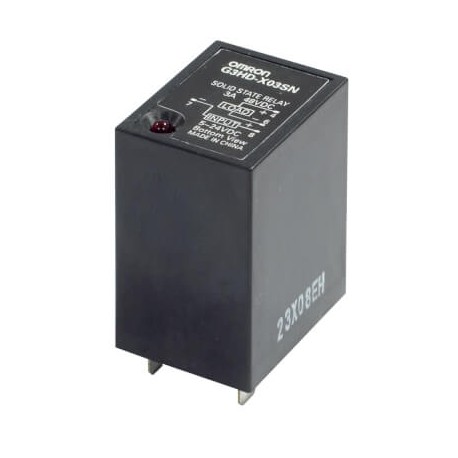

OMRON G3HD-X03SN-VD 5-24VDC G3HD-X03SN-VD 5-24VDC G3HD1023H G3HDX03SNVDDC524 OMRON Solid state relay, 4 to 48 VDC, 3 A, connection termi.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

G3HD-X03SN-VD 5-24VDC G3HD1023H G3HDX03SNVDDC524 OMRON Solid state relay, 4 to 48 VDC, 3 A, connection termi..

G3HD-X03SN-VD 5-24VDC

G3HD1023H

G3HDX03SNVDDC524

OMRON

10 Pcs.

Solid state relay, 4 to 48 VDC, 3 A, connection terminals, equipped with operation indicator 5 to 24 VDC

Automation > Solid state relay
Other

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

G3HD-X03SN-VD 5-24VDC G3HD1023H G3HDX03SNVDDC524 Omron solid state relay, 4 to 48 VDC, 3 A, connection termi.. provides fast electronic switching for DC-controlled industrial applications requiring high operational endurance. These specialized interface relays are typically installed in instrumentation panels and automated production lines to isolate control circuits from high-power field devices. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (operating voltage) (EF005294): DC
  • Voltage type for actuating (EF008242): DC
  • Modular version (EF001126): No
  • Rated operation current Ie at AC-1 (EF006069): 3 A
  • Number of phases (EF000351): 1
  • Operating voltage DC (EF008208): 3 V
  • Rated control supply voltage DC (EF003980): 5 V

More info

▲
ApplicationInterfaceNumber of phases1Mounting methodWith plug-in socketTerminal typePlug-inComplete with socketLED indicatorRated operational voltage, DC4-48 VOperating voltage range, DC3-52.8 VRated operation current Ie at AC-13 ASupply voltage DC5-24 VMust operate voltage max.3 VMust release voltage min.1 VMaximum operating temperature80 °CMinimum operating temperature-30 °CIsolationPhotocouplerSwitching at zero-crossing

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
