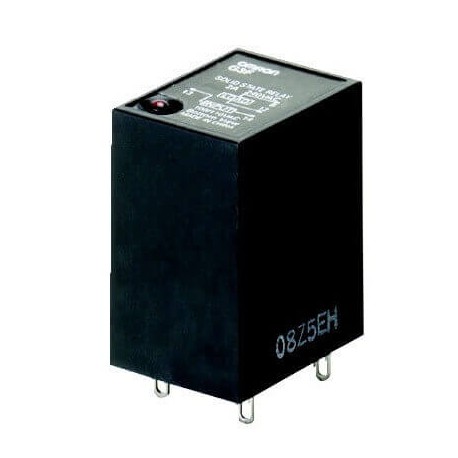

OMRON G3F-202SN-VD 100/110VAC G3F-202SN-VD 100/110VAC G3F 1029A G3F202SNVDAC100110 OMRON Solid-state relay, plug-in, zero crossing, 1-pole.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

G3F-202SN-VD 100/110VAC G3F 1029A G3F202SNVDAC100110 OMRON Solid-state relay, plug-in, zero crossing, 1-pole..

G3F-202SN-VD 100/110VAC

G3F 1029A

G3F202SNVDAC100110

OMRON

1 Pcs.

Solid-state relay, plug-in, zero crossing, 1-pole, 2 TO, 100..240 VAC Solid State Relay, Plug-in, Zero Pass, 1 Pole, 2 A, 100-110 VAC

Automation > Solid state relay
Other

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron G3F-202SN-VD 100/110VAC solid-state relay, plug-in, zero crossing, 1-pole. is a semiconductor switching device used to control electrical loads in industrial automation systems without mechanical wear. These relays provide reliable electronic switching for heaters, motors, and lighting circuits where rapid cycling and silent operation are required. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Application: Interface
  • Number of phases: 1
  • Mounting method: With plug-in socket
  • Terminal type: Plug-in
  • Rated operational voltage, AC: 100-240 V
  • Operating voltage range, AC: 75-264 V
  • Rated operation current Ie at AC-1: 2 A
  • Supply voltage AC: 100-110 V
  • Must operate voltage max.: 75 V
  • Must release voltage min.: 20 V
  • Maximum operating temperature: 80 °C
  • Minimum operating temperature: -30 °C
  • Isolation: Photocoupler
  • Voltage type (operating voltage) (EF005294): AC
  • Voltage type for actuating (EF008242): AC
  • Switching at zero-crossing (EF011956): Yes

More info

▲

Specifications

ApplicationInterface
Number of phases1
Mounting methodWith plug-in socket
Terminal typePlug-in
Complete with socket
LED indicator
Rated operational voltage, AC100-240 V
Operating voltage range, AC75-264 V
Rated operation current Ie at AC-12 A
Supply voltage AC100-110 V
Must operate voltage max.75 V
Must release voltage min.20 V
Maximum operating temperature80 °C
Minimum operating temperature-30 °C
IsolationPhotocoupler
Switching at zero-crossing
