View larger
Images are for illustrative purposes only. Please refer to data sheet for details

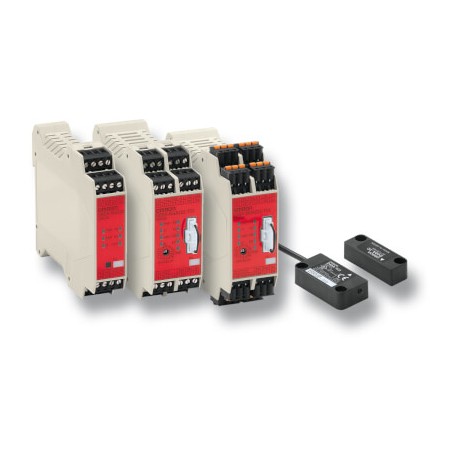

G9SX-ADA222-T15-RT DC24 G9SX6012M G9SXADA222T15RTDC24,1 OMRON Module Sec. 4 Outputs(t15s.)/2 Tickets 2AND 35..
G9SX-ADA222-T15-RT DC24
G9SX6012M
G9SXADA222T15RTDC24.1
OMRON
1 Pcs.
Module Sec. 4 Outputs(t15s.)/2 Tickets 2AND 35mm 24vdc
Advanced unit (to be used with Basic unit), 2 x NO solid state outputs (1 A), 2 x NO off delay solid state outputs (0-15s), 2 x NO solid state auxs, l
Automation > Device for monitoring of safety-related circuits
G9SX
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲ Features
Flexible safety unit
G9SX-family modules can be connected by a logical “AND” function to implement partial/global stopping of a machine. Solid-state outputs, detailed LED diagnosis and clever feedback signals help to keep maintenance easy. The line-up is completed by expansion units with safe timing functions.
- Clear and transparent segmentation of safety functions by use of unique "AND" connection
- Solid-state outputs for long life and relay outputs in extension box available
- Detailed LED indications enable easy diagnosis
- Clever feedback signals for easy maintenance
- Category-4 according to EN954-1 and SIL 3 according to EN 61508
Ordering information
Advanced unit
Max. OFF-delay time1 | |||||||
|---|---|---|---|---|---|---|---|
Basic unit
Expansion unit
Specifications
Power input
Inputs
Operating voltage: 20.4 VDC to 26.4 VDC, | ||
Outputs
| P channel MOS FET transistor output | P channel MOS FET transistor output | |
Expansion unit
Characteristics
| Feature Name | Feature Value |
|---|---|
| Stop category according to IEC 60204 (EF007498) | Other |
| Performance level according to EN ISO 13849-1 (EF007399) | Level e |
| Type of safety according to IEC 61496-1 (EF004105) | 4 |
| Model (EF000010) | Expansion device |
| Evaluation inputs (EF008245) | 1-channel or 1- and 2-channel |
| Type of electric connection (EF003961) | Screw connection |
| SIL according to IEC 61508 (EF009889) | 3 |
| Voltage type (supply voltage) (EF002991) | DC |
| With approval for TÜV (EFDE0031) | Yes |
| Suitable for monitoring of proximity switches (EF007267) | No |
| Suitable for monitoring of emergency-stop circuits (EF007268) | Yes |
| Suitable for monitoring of optoelectronic protection equipment (EF007269) | Yes |
| With detachable clamps (EF003340) | Yes |
| With start input (EF003342) | No |
| With muting function (EF004057) | No |
| Suitable for monitoring of valves (EF007272) | No |
| With approval according to UL (EF001783) | Yes |
| Suitable for monitoring of tactile sensors (EF007271) | No |
| With feedback circuit (EF003343) | Yes |
| Suitable for monitoring of magnetic switches (EF007266) | No |
| Suitable for monitoring of position switches (EF007270) | Yes |
| Suitable for rail mounting (EF003972) | Yes |
| With approval for BG BIA (EF004145) | No |
| Number of outputs, signalling function, undelayed, with contact (EF003348) | 0 |
| Number of outputs, safety related, undelayed, semiconductors (EF003346) | 2 |
| Number of outputs, safety related, delayed, semiconductors (EF003347) | 2 |
| Number of outputs, safety related, delayed, with contact (EF003345) | 0 |
| Number of outputs, signalling function, delayed, with contact (EF003349) | 0 |
| Width (EF000008) | 35 mm |
| Number of outputs, signalling function, delayed, semiconductors (EF003351) | 0 |
| Height (EF000040) | 100 mm |
| Number of outputs, safety related, undelayed, with contact (EF003344) | 0 |
| Rated switch current (EF006706) | 1 A |
| Number of outputs, signalling function, undelayed, semiconductors (EF003350) | 2 |
| Depth (EF000049) | 115 mm |
| Release-delay (EF001129) | 0 s |
| Supply voltage DC (EF007534) | 20.4 V |
