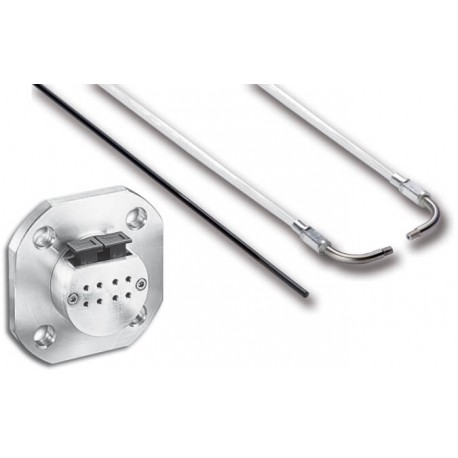

Fiber optics for vacuum. Side atmospheric 2m Optical fiber for vacuum. Atmospheric side 2m

Automation > Optical fibre sensor / optical fibre amplifier
E32

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Fiber optics for vacuum. Side atmospheric 2m are specialized optical cable assemblies designed to maintain reliable optical sensing inside extreme vacuum chambers and high-temperature processing environments. They connect specialized internal sensing heads to external amplifiers without compromising chamber pressure seals.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • dia 3: 950
  • 4 channel flange: 80 × 80 × 49 mm
  • 1 channel flange: 96 × dia 30 mm max.
  • Flange-to-amplifier connection fiber: 2 m length
  • Permissible bending radius: R30
  • Cut to length: No
  • Material: Head
  • Fiber: Glass
  • Sheath: Fluororesin coating
  • Leakage rate: 1 × 10-10 Pa*m3/s max
  • Ambient temperature: -25°C to 55°C
  • Material: Flange
  • Seal: Fluorocarbon rubber (viton)
  • E39-F16: Focal lens (vacuum resistant, heat resistant)
  • For fiber with dia 1.0: E39-F14
  • For fibers with dia between 1.0 and 2.2: E39-F15

More info

▲
  • Leakage rate of 1x10-10Pa*m3/s max
  • Heat resistance up to 200°C
  • Detergent resistant fluororesin or stainless steel fiber sheath

Specifications & ordering info

Ordering information

Sensor

Sensor type

Size

Sensing distance (in mm)1

Temperature range

Order code

E3X-HD

E3NX-FA

M4

400

600

-40°C to 120°C

E32-T51V 1M

dia 3

250

370

-40°C to 120°C

E32-T54V 1M

dia 3

950

1400

-60°C to 200°C

E32-T84SV 1M

33 × 18 × 5.5 mm

5

-40°C to 70°C

E32-G86V-1 3M

Flange

Type

Size

Order code

4 channel flange

80 × 80 × 49 mm

E32-VF4

1 channel flange

96 × dia 30 mm max.

E32-VF1

Flange-to-amplifier connection fiber

2 m length

E32-T10V 2M

Specifications

Item

Fiber sensor heads

Flange-to-amplifier fiber

E32-T51V

E32-T54V

E32-T84SV

E32-G86V-1

E32-T10V

Permissible bending radius

R30

R25

Cut to length

No

Yes

Material

Head

Aluminium

Stainless steel

-

Fiber

Glass

PMMA

Sheath

Fluororesin coating

Stainless steel spiral coating

Polyethylene coating

Degree of protection

-

Item

Flange

E32-VF1

E32-VF4

Leakage rate

1 × 10-10 Pa*m3/s max

Ambient temperature

-25°C to 55°C

Material

Flange

Aluminium and stainless steel

Aluminium

Seal

Fluorocarbon rubber (viton)


1.Sensing distance measured with Standard Mode

Accessories

Accessories

Shape

Type

Comment

Order code

Focal lens

- Extends sensing distance by more than 500%

- For M4 Through beam fibers E32-TC200, E32-ET11R, E32-T11 (fits M2.6 thread)

- 2 pcs per set

E39-F1

Focal lens (side view)

- For M4 through beam fibers E32-TC200, E32-ET11R, E32-T11,
E32-T61-S, E32-T81R-S (fits M2.6 thread)

- Temperature range -40 to 200°C

- 2 pcs per set

E39-F2

Focal lens (variable)

- For precision detection with E32-D32

E39-F3A

Focal lens

- For precision detection with E32-EC41

E39-F3A-5

- For precision detection with E32-EC41

E39-F3B

- For precision detection with M6 coaxial diffuse reflective fibers (e.g. E32-CC200)

E39-F18

Focal lens (side view, variable)

- For precision detection with E32-EC31

E39-EF51

Focal lens (heat resistant)

- Extends sensing distance by more than 500%

- For M4 through beam fibers E32-ET51, E32-T61, E32-T61-S,
E32-T81R, E32-T81R-S (fits M4 thread)

- Temperature range -60 to 350°C

- 2 pcs per set

E39-EF1-37-2

E39-F16

Focal lens (vacuum resistant, heat resistant)

- Fits E32-T51V and E32-T54V (fits M2.6 thread)

- 2 units per set

- Heat resistant up to 120°C

E39-F1V

Fiber cutter

- Included in applicable fiber

E39-F4

Thin fiber attachment

- Amplifier adapter for thin fibers

- Included in applicable fiber (2 sets)

E39-F9

Sleeve bender

- For E32-TC200B(4)

- For E32-TC200F(4)

- For E32-DC200F(4)

E39-F11

Single fiber extension
connector

- Fiber extension connector for 2.2 mm dia standard fibers

- One unit

E39-F10

Dual fiber extension connector

- For fibers with dia 2.2

E39-F13

- For fiber with dia 1.0

E39-F14

- For fibers with dia between 1.0 and 2.2

E39-F15

Protective spiral tube1

- For M3 diffuse type sensors

- Length 1 m

E39-F32A

- For M3 through beam type sensors

- Length 1 m

E39-F32B

- For M4 through beam type sensors

- Length 1 m

E39-F32C

- For M6 diffuse type sensors

- Length 1 m

E39-F32D

Fiber on roll2

- Dia 2.2 mm

- Standard monocore, 10 mm bending radius

- -40 to 80°C

E32-E01 100M

- Dia 1.1 mm

- Standard monocore, 15 mm bending radius

- -40 to 80°C

E32-E02 100M

- Dia 2.2 mm

- High flex multicore, 1 mm bending radius

- -40 to 80°C

E32-E01R 100M

- Dia 1.1 mm

- High flex multicore, 1 mm bending radius

- -40 to 80°C

E32-E02R 100M

- Dia 2.2 mm

- High temperature monocore, 20 mm bending radius

- -60 to 150°C

E32-E05 100M


1.Protective spiral tubes with 0.5 m length are available. Add '5' to order code ... e.g. E39-F32A5

2.Fiber length 100 m on a roll - cut to length

1.Protective spiral tubes with 0.5 m length are available. Add '5' to order code ... e.g. E39-F32A5

2.Fiber length 100 m on a roll - cut to length


Product Datasheet
