View larger
Images are for illustrative purposes only. Please refer to data sheet for details
E32-T11R 2M E32 1454R E32T11R2M,1 OMRON Barrier Flexible Threaded M4
E32-T11R 2M
E32 1454R
E32T11R2M.1
OMRON
10 Pcs.
Barrier Flexible Threaded M4

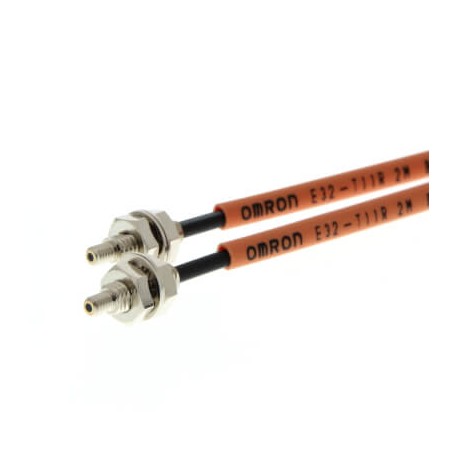

Fiber optic sensor head, through-beam, M4 cylindrical axial, R1 flexible fiber, 2 m cable
Automation > Optical fibre sensor / optical fibre amplifier
E32
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Sensing methodThrough-beamShapeThreadedSizeM4ApplicationObject detectionFeaturesFlexible fiberTemperature range-40-70 °CSensing distance3000 mmCable length2 mBending radius1 mmFree cutMaterial corePlasticDegree of protection (IP)IP67Sensing surface orientationTop-viewMaterial sheathPVC
| Feature Name | Feature Value |
|---|---|
| Voltage type (EF000187) | Other |
| Construction type housing (EF004008) | Cylinder, screw-thread |
| Laser protection class (EF004027) | Other |
| Degree of protection (IP) (EF005474) | IP67 |
| Setting procedure (EF003994) | Other |
| Indication (EF000350) | Other |
| Type of switch function (EF003963) | Programmable/configurable |
| Type of electric connection (EF003961) | Cable |
| Material fibre optics core (EF004137) | Plastic |
| Housing material (EF001596) | Brass |
| Type of light (EF004029) | Polarity free red light |
| Material of cable sheath (EF004136) | Polyvinyl chloride (PVC) |
| Type of switching output (EF003962) | Other |
| Operation agent-safety class (EF003982) | Safety class 0 |
| Analogue output -10 V ... +10 V (EF006809) | No |
| Analogue output 0 V ... 10 V (EF006807) | No |
| Analogue output 0 mA ... 20 mA (EF006808) | No |
| With blanking function (EF003968) | No |
| Analogue output 4 mA ... 20 mA (EF006810) | No |
| With time function (EF003582) | No |
| Nominal operating distance (EF004059) | 1400 mm |
| Number of semiconductor outputs with signalling function (EF003945) | 0 |
| Height amplifier (EF007284) | 33.5 mm |
| Length amplifier (EF007335) | 71.8 mm |
| Diameter sensor (EF007111) | 4 mm |
| Number of contact energized outputs with signalling function (EF003946) | 0 |
| Ambient temperature (EF002386) | -40 °C |
