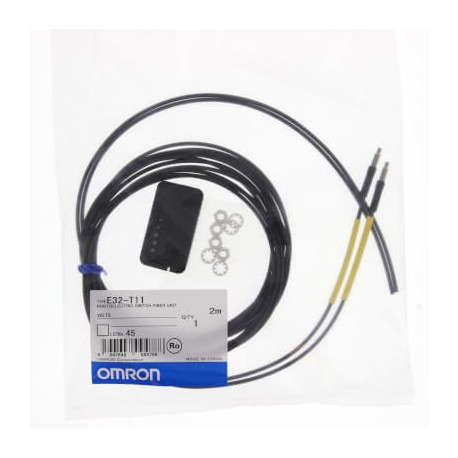

OMRON E32-T11 2M E32-T11 2M E32 1309G E32T112M OMRON Barrier Flexible (R4) Threaded M4 2m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E32-T11 2M E32 1309G E32T112M OMRON Barrier Flexible (R4) Threaded M4 2m

E32-T11 2M

E32 1309G

E32T112M

OMRON

1 Pcs.

Barrier Flexible (R4) Threaded M4 2m Fiber optic sensor head, through-beam, M4 cylindrical axial, R4 bend resitant fiber, 2 m cable

Automation > Optical fibre sensor / optical fibre amplifier
E32

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron E32-T11 2M is an E32 Barrier Flexible (R4) Threaded M4 2m designed to facilitate object and position sensing in demanding automation setups. Fiber optic cable assemblies connect with compatible amplifiers to transmit light signals to hard-to-reach or harsh measurement points, ensuring high immunity to electrical noise and mechanical constraints. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Rod
  • Degree of protection (IP) (EF005474): IP67
  • Material fibre optics core (EF004137): Plastic
  • Housing material (EF001596): Plastic
  • Material of cable sheath (EF004136): Polyvinyl chloride (PVC)
  • Operation agent-safety class (EF003982): Safety class 0
  • Analogue output -10 V ... +10 V (EF006809): No
  • Analogue output 0 V ... 10 V (EF006807): No
  • Analogue output 0 mA ... 20 mA (EF006808): No
  • With blanking function (EF003968): No
  • Analogue output 4 mA ... 20 mA (EF006810): No
  • With time function (EF003582): No
  • Nominal operating distance (EF004059): 4000 mm
  • Height amplifier (EF007284): 33.5 mm
  • Length amplifier (EF007335): 71.8 mm
  • Diameter sensor (EF007111): 4 mm

More info

▲
Sensing methodThrough-beamShapeThreadedSizeM4ApplicationObject detectionFeaturesBend resistantTemperature range-40-70 °CSensing distance3750 mmCable length2 mBending radius4 mmFree cutMaterial corePlasticDegree of protection (IP)IP67Sensing surface orientationTop-viewMaterial sheathPVC
