E32-D61-S 2M E32 2170G E32D61S2M,1 OMRON Slr high temperature to 350 ° c. Screw M6
E32-D61-S 2M
E32 2170G
E32D61S2M.1
OMRON
1 Pcs.
Slr high temperature to 350 ° c. Screw M6

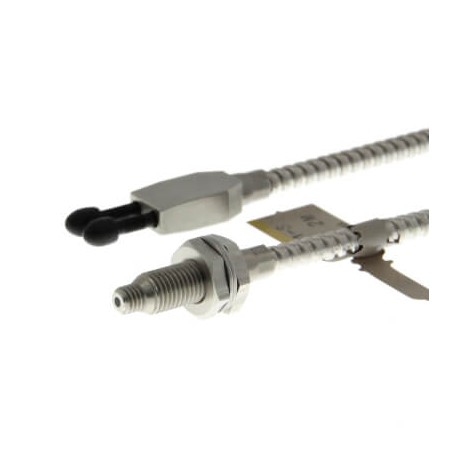

Fiber optic sensor head, diffuse, M6 cylindrical axial, R25 heat resistant fiber, up to 350ºC, 2 m cable
Automation > Optical fibre sensor / optical fibre amplifier
E32
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Sensing methodDiffuse reflectiveShapeThreadedSizeM6ApplicationObject detectionFeaturesHeat-resistantTemperature range-60-350 °CSensing distance630 mmCable length2 mBending radius25 mmFree cutMaterial coreGlassSensing surface orientationTop-viewMaterial sheathSUS
| Feature Name | Feature Value |
|---|---|
| Voltage type (EF000187) | AC/DC |
| Construction type housing (EF004008) | Cylinder, screw-thread |
| Laser protection class (EF004027) | Other |
| Degree of protection (IP) (EF005474) | IP67 |
| Setting procedure (EF003994) | Manual adjustment |
| Indication (EF000350) | Other |
| Type of switch function (EF003963) | Programmable/configurable |
| Type of electric connection (EF003961) | Cable |
| Material fibre optics core (EF004137) | Glass |
| Housing material (EF001596) | Plastic |
| Type of light (EF004029) | Laser diode, red light |
| Material of cable sheath (EF004136) | Other |
| Type of switching output (EF003962) | Other |
| Operation agent-safety class (EF003982) | Safety class 0 |
| Analogue output -10 V ... +10 V (EF006809) | No |
| Analogue output 0 V ... 10 V (EF006807) | No |
| Analogue output 0 mA ... 20 mA (EF006808) | No |
| With blanking function (EF003968) | No |
| Analogue output 4 mA ... 20 mA (EF006810) | No |
| With time function (EF003582) | No |
| Nominal operating distance (EF004059) | 270 mm |
| Number of semiconductor outputs with signalling function (EF003945) | 0 |
| Height amplifier (EF007284) | 7 mm |
| Length amplifier (EF007335) | 25 mm |
| Diameter sensor (EF007111) | 1 mm |
| Number of contact energized outputs with signalling function (EF003946) | 0 |
| Width amplifier (EF007095) | 10 mm |
| Ambient temperature (EF002386) | -60 °C |
