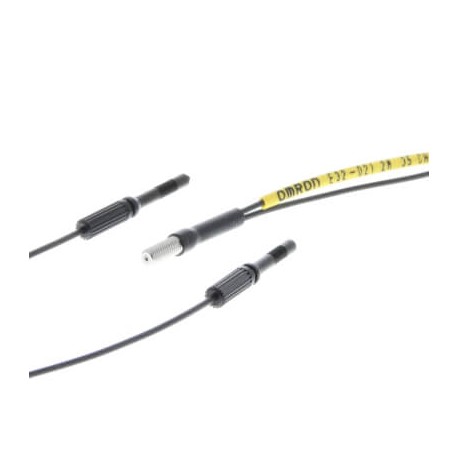

OMRON E32-D21L 2M E32-D21L 2M E32 1326G E32D21L2M OMRON Slr Long distance Threaded M4 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E32-D21L 2M E32 1326G E32D21L2M OMRON Slr Long distance Threaded M4

E32-D21L 2M

E32 1326G

E32D21L2M

OMRON

1 Pcs.

Slr Long distance Threaded M4 Fiber optic sensor head, diffuse, long distance detection, M4 cylindrical axial, R10 fiber, 2 m cable

Automation > Optical fibre sensor / optical fibre amplifier
E32

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Long-range diffuse detection in cramped assembly cells is enabled by the Omron E32-D21L 2M long-distance threaded fiber optic sensor. Screw-mount sensor heads direct light toward a target and evaluate the return signal, providing consistent performance for parts monitoring and routing tasks.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cylinder, screw-thread
  • Degree of protection (IP) (EF005474): IP67
  • Type of switch function (EF003963): Programmable/configurable
  • Type of electric connection (EF003961): Cable
  • Housing material (EF001596): Plastic
  • Operation agent-safety class (EF003982): Safety class 0
  • Analogue output -10 V ... +10 V (EF006809): No
  • Analogue output 0 V ... 10 V (EF006807): No
  • Analogue output 0 mA ... 20 mA (EF006808): No
  • With blanking function (EF003968): No
  • Analogue output 4 mA ... 20 mA (EF006810): No
  • With time function (EF003582): No
  • Nominal operating distance (EF004059): 390 mm
  • Height amplifier (EF007284): 5.5 mm
  • Length amplifier (EF007335): 11 mm
  • Diameter sensor (EF007111): 2.5 mm

More info

▲
Sensing methodDiffuse reflectiveShapeThreadedSizeM4ApplicationLong distance detectionTemperature range-40-70 °CSensing distance390 mmCable length2 mBending radius10 mmFree cutMaterial corePlasticDegree of protection (IP)IP67Sensing surface orientationTop-viewMaterial sheathPolyethylene
