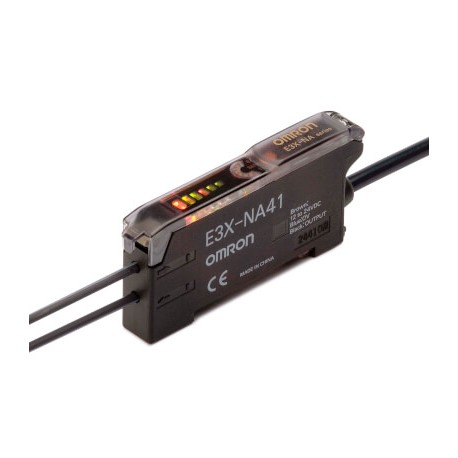

Manual cc 3h NPN Timing. Sleuth. brands Amplifier, with potentiometer, mark detection, green LED, NPN output, 2m cable

Automation > Optical fibre sensor / optical fibre amplifier
E3X

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron manual cc 3h NPN Timing. Sleuth. brands E3X-NAG11 2M operates as a traditional photoelectric fiber amplifier designed to process optical signals and deliver discrete switching outputs in automated machinery. Such modules form the backbone of precision part-detection systems in assembly and packaging setups.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Standard: E3X-NA11 2M
  • Enhanced water resistance: E3X-NA11V 2M
  • Standard (fiber amplifier connector) 1: E3X-NA6
  • Enhanced water resistance (M8 4-pin connector): E3X-NA14V
  • 30 cm PVC cable with M8 plug connector (4 pin): E3X-CN21-M3J-2 0.3M
  • Light source (wave length): Red LED (625 nm)
  • Power supply voltage: 12 to 24 VDC±10%, ripple (p-p): 10% max.
  • Response time: Operation or reset: 200 µs max.
  • Sensitivity setting: 8-turn endless adjuster (potentiometer)
  • Functions: OFF-delay timer: 40 ms (fixed)
  • Degree of protection: IEC 60529 IP50 (with protective cover attached)
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cuboid
  • Degree of protection (IP) (EF005474): IP50
  • Setting procedure (EF003994): Manual adjustment
  • Indication (EF000350): Bar graph

More info

▲
Features

Digital fiber amplifier with potentiometer adjustment

The E3X-NA is the ideal amplifier for standard fiber applications providing quick & easy potentiometer adjustment and bargraph display.

  • Easy adjustment with potentiometer
  • Mutual interference prevention
  • Enhanced water resistance types

Simple adjustment

simple adjustment 01 prod

Bargraph display with light level, switching status and threshold indicators.

simple adjustment 02 prod

Simple sensitivity adjustment by potentiometer.

Ordering information

Pre-wired

Item

Order code (for pre-wired types with 2 m cable length)

NPN output

PNP output

Standard

E3X-NA11 2M

E3X-NA41 2M

Enhanced water resistance

E3X-NA11V 2M

E3X-NA41V 2M

Connector version

Item

Order code

NPN output

PNP output

Standard (fiber amplifier connector)1

E3X-NA6

E3X-NA8

Enhanced water resistance
(M8 4-pin connector)

E3X-NA14V

E3X-NA44V

Fiber amplifier connectors

Shape

Type

Comment

Order code


Fiber amplifier connector

2 m PVC cable

E3X-CN21


30 cm PVC cable
with M12 plug connector (4 pin)

E3X-CN21-M1J 0.3M

30 cm PVC cable
with M8 plug connector (4 pin)

E3X-CN21-M3J-2 0.3M

Specifications

Item

Standard

Enhanced water resistance

Output

NPN output

E3X-NA11, E3X-NA6

E3X-NA11V, E3X-NA14V

PNP output

E3X-NA41, E3X-NA8

E3X-NA41V, E3X-NA44V

Light source (wave length)

Red LED (625 nm)

Power supply voltage

12 to 24 VDC±10%, ripple (p-p): 10% max.

Protective circuit

Reverse polarity protection, output short-circuit protection, mutual interference prevention

Response time

Operation or reset: 200 µs max.

Sensitivity setting

8-turn endless adjuster (potentiometer)

Functions

OFF-delay timer: 40 ms (fixed)

Degree of protection

IEC 60529 IP50 (with protective cover attached)

IEC 60529 IP66 (with protective cover attached)


1.Order connector separately.
