View larger
Images are for illustrative purposes only. Please refer to data sheet for details

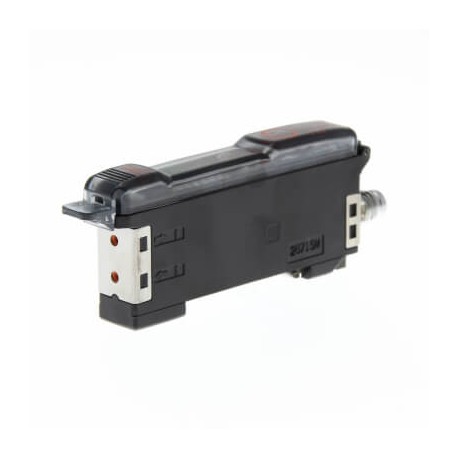

E3X-NA44V E3X 7007B E3XNA44VOMS OMRON Manual cc 3h PNP IP66 M8
E3X-NA44V
E3X 7007B
E3XNA44VOMS
OMRON
1 Pcs.
Manual cc 3h PNP IP66 M8
Amplifier with potentiometer, IP66, PNP output, M8 plug-in
Automation > Optical fibre sensor / optical fibre amplifier
E3X
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
ShapeCuboid, rail mountingSensing methodAmplifierSetting methodManual adjustmentConnection methodConnector M8 - 4 pinOutput typePNPOperation modeDark-ON, Light-ONResponse time0.2 msMaterial housingPBTProduct Width (unpacked)12 mmProduct Height (unpacked)33 mmProduct Length (unpacked)81.5 mmType of lightPolarity free red lightPower supply voltage12-24 VFunctionsTimerFeaturesEnhanced water resistanceApplicationObject detectionNumber of channels1Degree of protection (IP)IP66Number of digital outputs1
| Feature Name | Feature Value |
|---|---|
| Voltage type (EF000187) | DC |
| Construction type housing (EF004008) | Cuboid |
| Laser protection class (EF004027) | Other |
| Degree of protection (IP) (EF005474) | IP66 |
| Setting procedure (EF003994) | Manual adjustment |
| Indication (EF000350) | Bar graph |
| Type of switch function (EF003963) | Programmable/configurable |
| Type of electric connection (EF003961) | Connector M8 |
| Material fibre optics core (EF004137) | Plastic |
| Housing material (EF001596) | Plastic |
| Type of light (EF004029) | Polarity free red light |
| Material of cable sheath (EF004136) | Other |
| Type of switching output (EF003962) | PNP |
| Operation agent-safety class (EF003982) | Safety class 0 |
| Analogue output -10 V ... +10 V (EF006809) | No |
| Analogue output 0 V ... 10 V (EF006807) | No |
| Analogue output 0 mA ... 20 mA (EF006808) | No |
| With blanking function (EF003968) | No |
| Analogue output 4 mA ... 20 mA (EF006810) | No |
| With time function (EF003582) | Yes |
| No-load current (EF004028) | 35 mA |
| Number of semiconductor outputs with signalling function (EF003945) | 1 |
| Height amplifier (EF007284) | 33 mm |
| Length amplifier (EF007335) | 92.5 mm |
| Max. output current (EF001315) | 50 mA |
| Switching frequency (EF003587) | 2500 Hz |
| Number of contact energized outputs with signalling function (EF003946) | 1 |
| Width amplifier (EF007095) | 12 mm |
| Rated control supply voltage DC (EF003980) | 12 V |
| Ambient temperature (EF002386) | -25 °C |
