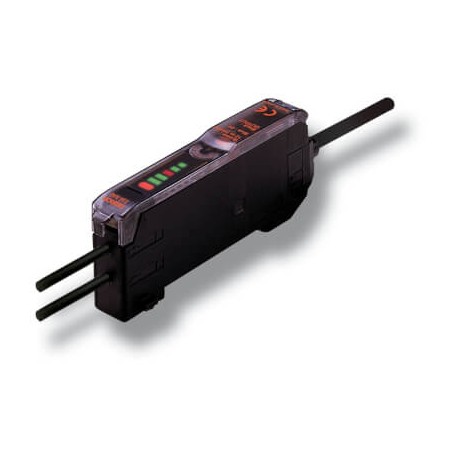

OMRON E3X-NA41 2M E3X-NA41 2M E3X 7002A E3XNA412MOMS OMRON Manual cc 3h PNP Timing GIGA RAY Led View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E3X-NA41 2M E3X 7002A E3XNA412MOMS OMRON Manual cc 3h PNP Timing GIGA RAY Led

E3X-NA41 2M

E3X 7002A

E3XNA412MOMS

OMRON

1 Pcs.

Manual cc 3h PNP Timing GIGA RAY Led Amplifier with potentiometer, IP50, PNP output, 2m cable Photoelectric sensor, optical fibre amplifier, bar LED display, DC, 3-wire, PNP, 2 m cable

Automation > Optical fibre sensor / optical fibre amplifier
E3X

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron E3X-NA41 2M is a manual DC fiber amplifier featuring a bar graph display, engineered to evaluate signals from optical sensor cables in industrial automation setups. Fiber amplifiers translate captured light variations into reliable switching states for high-speed automated detection and counting.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cuboid
  • Degree of protection (IP) (EF005474): IP50
  • Setting procedure (EF003994): Manual adjustment
  • Indication (EF000350): Bar graph
  • Type of switch function (EF003963): Programmable/configurable
  • Type of electric connection (EF003961): Cable
  • Material fibre optics core (EF004137): Plastic
  • Housing material (EF001596): Plastic
  • Type of light (EF004029): Polarity free red light
  • Material of cable sheath (EF004136): Polyvinyl chloride (PVC)
  • Type of switching output (EF003962): PNP
  • Operation agent-safety class (EF003982): Safety class 3
  • Analogue output -10 V ... +10 V (EF006809): No
  • Analogue output 0 V ... 10 V (EF006807): No
  • Analogue output 0 mA ... 20 mA (EF006808): No

More info

▲
ShapeCuboid, rail mountingSensing methodAmplifierSetting methodManual adjustmentConnection methodCableCable length2 mOutput typePNPOperation modeDark-ON, Light-ONResponse time0.2 msMaterial housingPBTProduct Width (unpacked)10 mmProduct Height (unpacked)31.5 mmProduct Length (unpacked)64.3 mmType of lightPolarity free red lightPower supply voltage12-24 VFunctionsTimerApplicationObject detectionNumber of channels1Degree of protection (IP)IP50Number of digital outputs1

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
