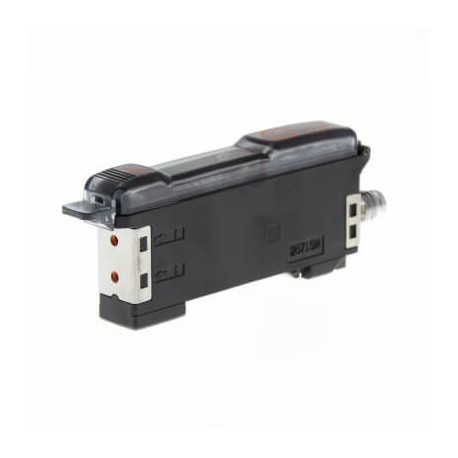

OMRON E3X-NA14V E3X-NA14V E3X 7012R E3XNA14VOMS OMRON Manual cc 3h NPN IP66 M8 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E3X-NA14V E3X 7012R E3XNA14VOMS OMRON Manual cc 3h NPN IP66 M8

E3X-NA14V

E3X 7012R

E3XNA14VOMS

OMRON

1 Pcs.

Manual cc 3h NPN IP66 M8 Amplifier with potentiometer, IP66, NPN output, M8 plug-in

Automation > Optical fibre sensor / optical fibre amplifier
E3X

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron E3X-NA14V is a manual fiber optic amplifier equipped with NPN switching outputs, designed to evaluate light levels received from connected sensor cables. These control units are staple devices in factory automation control panels for managing optical detection logic. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cuboid
  • Degree of protection (IP) (EF005474): IP66
  • Setting procedure (EF003994): Manual adjustment
  • Indication (EF000350): Bar graph
  • Type of switch function (EF003963): Programmable/configurable
  • Type of electric connection (EF003961): Connector M8
  • Material fibre optics core (EF004137): Plastic
  • Housing material (EF001596): Plastic
  • Type of light (EF004029): Polarity free red light
  • Type of switching output (EF003962): NPN
  • Operation agent-safety class (EF003982): Safety class 0
  • Analogue output -10 V ... +10 V (EF006809): No
  • Analogue output 0 V ... 10 V (EF006807): No
  • Analogue output 0 mA ... 20 mA (EF006808): No
  • With blanking function (EF003968): No

More info

▲
ShapeCuboid, rail mountingSensing methodAmplifierSetting methodManual adjustmentConnection methodConnector M8 - 4 pinOutput typeNPNOperation modeDark-ON, Light-ONResponse time0.2 msMaterial housingPBTProduct Width (unpacked)12 mmProduct Height (unpacked)33 mmProduct Length (unpacked)81.5 mmType of lightPolarity free red lightPower supply voltage12-24 VFunctionsTimerFeaturesEnhanced water resistanceApplicationObject detectionNumber of channels1Degree of protection (IP)IP66Number of digital outputs1
