OMRON E3X-NA11F 2M E3X-NA11F 2M E3X 7008M E3XNA11F2MOMS OMRON Manual cc 3h NPN Timing High-speed View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E3X-NA11F 2M E3X 7008M E3XNA11F2MOMS OMRON Manual cc 3h NPN Timing High-speed

E3X-NA11F 2M

E3X 7008M

E3XNA11F2MOMS

OMRON

1 Pcs.

Manual cc 3h NPN Timing High-speed Fiber amplifier with potentiometer, fast respons time, NPN output, 2m cable

Automation > Optical fibre sensor / optical fibre amplifier
E3X

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

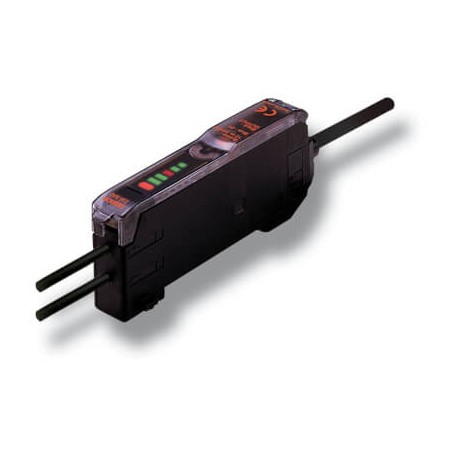

An Omron manual high-speed NPN timing sensor amplifier, part number E3X-NA11F 2M, is designed for precise object detection and photoelectric sensing tasks in fast-paced industrial automation lines. These units process optical signals from fiber optic cables to accurately trigger control systems based on threshold configurations.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type: DC
  • Construction type housing: Cuboid
  • Degree of protection (IP): IP50
  • Setting procedure: Manual adjustment
  • Indication: Bar graph
  • Type of switch function: Programmable/configurable
  • Type of electric connection: Cable
  • Material fibre optics core: Plastic
  • Housing material: Plastic
  • Type of light: Polarity free red light
  • Material of cable sheath: Polyvinyl chloride (PVC)
  • Type of switching output: NPN
  • Operation agent-safety class: Safety class 3
  • Analogue output -10 V ... +10 V: No
  • Analogue output 0 V ... 10 V: No
  • Analogue output 0 mA ... 20 mA: No

More info

▲
ShapeCuboid, rail mountingSensing methodAmplifierSetting methodManual adjustmentConnection methodCableCable length2 mOutput typeNPNOperation modeDark-ON, Light-ONResponse time0.02 msMaterial housingPBTProduct Width (unpacked)10 mmProduct Height (unpacked)31.5 mmProduct Length (unpacked)64.3 mmType of lightPolarity free red lightPower supply voltage12-24 VFunctionsTimerApplicationObject detectionNumber of channels1Degree of protection (IP)IP50Number of digital outputs1

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
